01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts

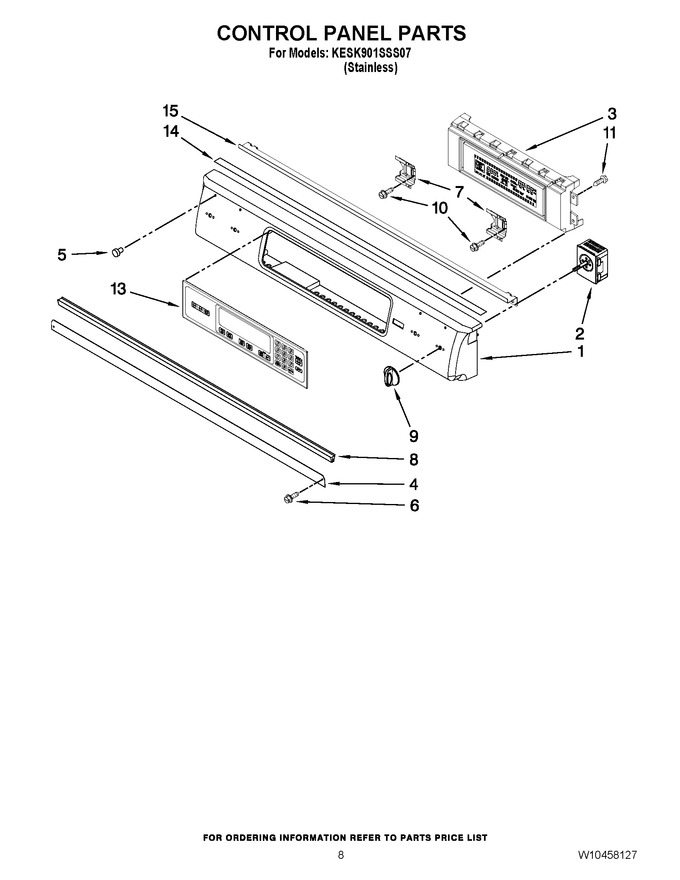

05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10190662 | Control Panel |
|
$ 232.34 | |||||
| 2 | WP3191050 | Switch, Infinite (rf) (Replaces: 4454540) |
|
Immediately | $ 149.72 | ||||
| 2 | WP4454541 | Switch, Infinite (rr) (Replaces: 4454541) |
|
$ 149.46 | |||||
| 2 | WP4456027 | Switch, Infinite (lf) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 2 | WP3191049 | Switch, Infinite (lr) (Replaces: 4454539) |
|
$ 150.25 | |||||
| 3 | W10206374 | Control, Electric |
|
- | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | WP3196068 | Lens, Indictor (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | W10156264 | Knob (lr,lf,rr) |
|
$ 40.33 | |||||
| 9 | W10156263 | Knob (rf) |
|
$ 38.92 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 11 | 9780271 | Screw |
|
- | |||||
| 13 | 9761565 | Membrane, Switch |
|
$ 214.96 | |||||
| 14 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 15 | W10117524 | Bracket, Gasket |
|
$ 36.94 |
