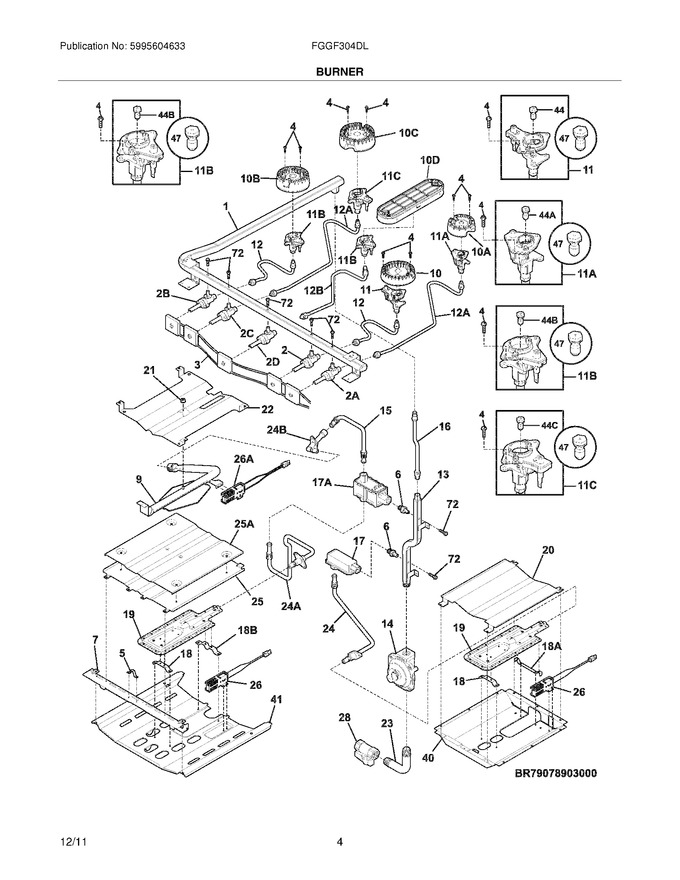

05 - Burner


07 - Body


09 - Top


11 - Door


14 - Wiring Diagram


15 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	318407201		Bracket,support ,oven Bottom		Appelez-nous	-
7	318571500		Shield,burner ,front		Appelez-nous	-
18	318577100		Bracket,bake Burner ,front ,(2)		Appelez-nous	-
20	318290402		Baffle,bake Burner ,lower Oven				$ 92.19
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
22	318579700		Baffle,broil Burner		Appelez-nous	-
25	318937500		Baffle,bake Burener ,upper Oven		Appelez-nous	-
40	318291801		Box,oven Burner ,lower				$ 58.75
41	318572200		Box,bake Burner ,upper Oven		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
18A	318577101		Bracket,bake Burner ,rear ,lower Oven		Appelez-nous	-
18B	318577102		Bracket,bake Burner ,rear ,upper Oven		Appelez-nous	-
25A	318580100		Deflector,bake Burner ,upper Oven		Appelez-nous	-
F1	316261600		Manifold,cooktop		Appelez-nous	-
F10	316438400		Burner,sealed ,18.2k			Immediately	$ 83.42
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10B	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10C	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316559300		Burner,sealed ,oval				$ 177.19
F11	316543203		Ignitor/orifice Assy.,top Burner ,17k ,w/holder				$ 12.20
F11A	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11B	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11C	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F12	316527100		Tube,burner ,front ,(2)				$ 44.26
F12A	316527200		Tube,burner ,rear ,(2)		Appelez-nous	-
F12B	316449200		Tube,burner ,center		Appelez-nous	-
F13	316259900		Tube,regulator ,to Mainfold		Appelez-nous	-
F14	316470716		Regulator,pressure				$ 117.55
F15	316281200		Tube,broiler Supply		Appelez-nous	-
F16	316281500		Tube,supply ,7/16``		Appelez-nous	-
F17	316259600		Valve,safety ,lower Oven				$ 197.17
F17A	316256700		Valve,safety ,upper Oven				$ 518.72
F19	357710306		Burner,bake ,(2)				$ 542.99
F2	318234021		Valve,top Burner ,17k				$ 121.38
F23	316281600		Pipe,inlet		Appelez-nous	-
F24	316281401		Mixer Elbow,bake ,lower Oven		Appelez-nous	-
F24A	316281300		Mixer Elbow,bake ,upper Oven		Appelez-nous	-
F24B	316409705		Mixer Elbow,broil ,upper Oven		Appelez-nous	-
F26	316489406		Ignitor,bake Burner ,(2)				$ 167.27
F26A	316489405		Ignitor,broil Burner				$ 178.97
F28	318087450		Valve,shut Off		Appelez-nous	-
F2A	318234025		Valve,top Burner ,5k				$ 121.38
F2B	318234024		Valve,top Burner ,9.5k				$ 127.73
F2C	318234022		Valve,top Burner ,14k				$ 121.38
F2D	5303935259		Valve,9.5k Burner ,center ,w/mtg Screw				$ 78.67
F3	318232661		Wiring Harness,w/igntr Switch				$ 91.76
F44	316527509		Orifice,burner ,18.2k				$ 19.85
F44A	316527504		Orifice,burner ,5k				$ 22.68
F44B	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44C	316527511		Orifice,top Burner ,14k				$ 19.85
F47	GRLP4		Conversion Kit,lp   (Replaces: 318565451)			Immediately	$ 56.70
F6	316281700		Fitting,adaptor ,(2)				$ 81.50
F9	316261501		Burner,broil ,upper Oven		Appelez-nous	-
FNI	318199790		Wiring Harness,ignitor				$ 107.02
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	318586400		Support,safety Valve ,upper		Appelez-nous	-
NI	318586401		Support,safety Valve ,lower		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
