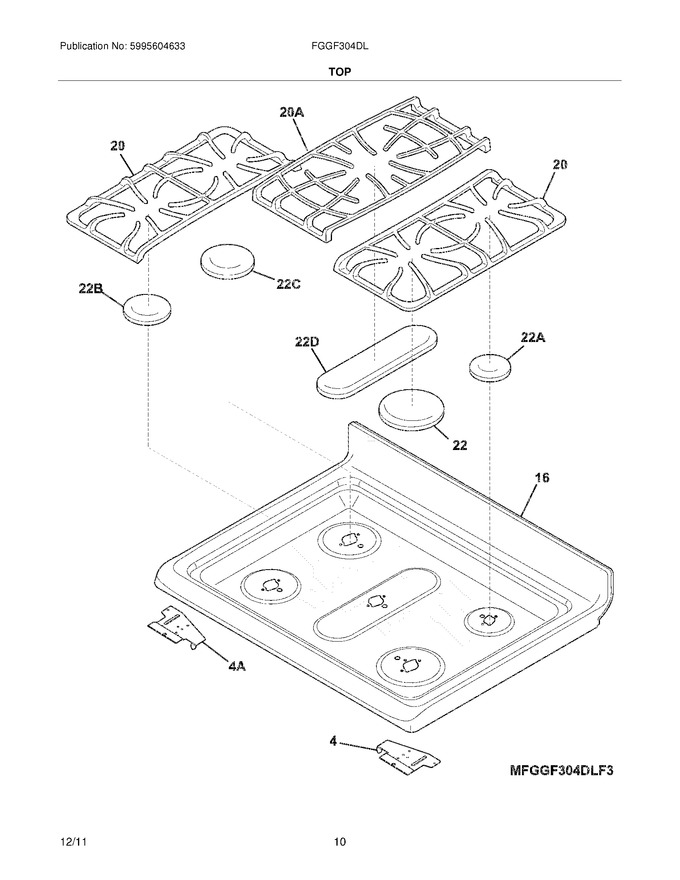

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318287575		Cook Top Assy,white		Appelez-nous	-
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	5304508468		Cap,18.2k Burner ,black   (Replaces: 316262104)				$ 49.45
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
4A	316285003		Bracket-maintop		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
