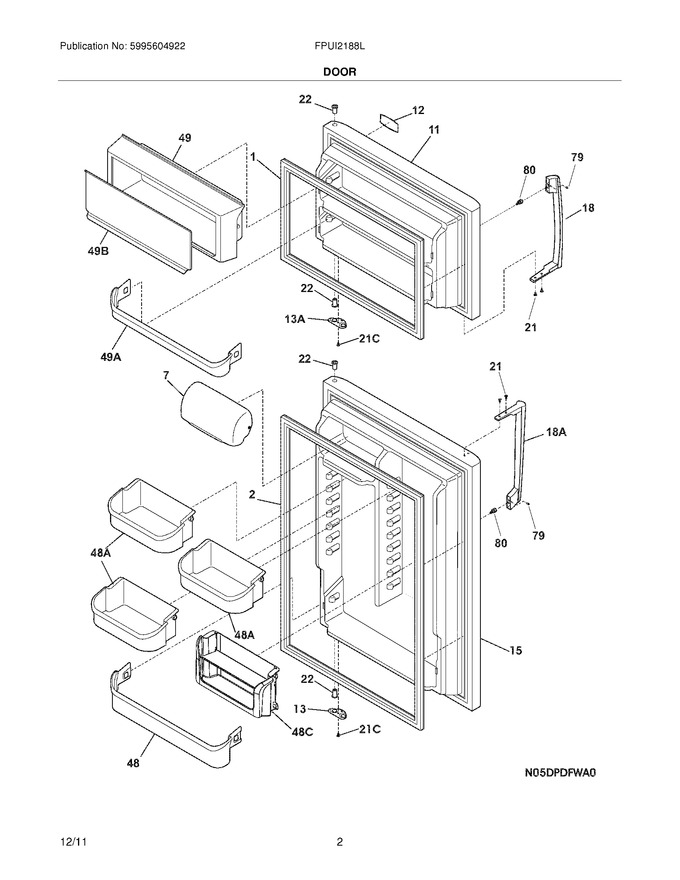

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
11	240450394		Door-frzr,stainless ,complete Assy				$ 393.54
12	242015101		Nameplate				$ 4.55
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	241837285		Door-refr,stainless ,complete Assy				$ 546.74
18	241977601		Handle-door,refr-lh/frzr-rh		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	242088601		Bin-door,frzr-upper				$ 106.68
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	241977602		Handle-door,refr-rh/frzr-lh		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon   (Replaces: 241808227)			Immediately	$ 79.97
48C	242088303		Bin-door,left Over				$ 57.18
49A	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
49B	242088801		Cover,soft Frz Bin				$ 102.06
F1	241872505		Gasket-frzr Door,white ,magnetic				$ 162.93
F2	242193213		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 241872513)			Immediately	$ 190.22
F48A	241779603		Liner,bin				$ 26.09
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
