SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet


07 - Shelves


09 - System


11 - Ice Maker


12 - Wiring Schematic


13 - Wiring Diagram

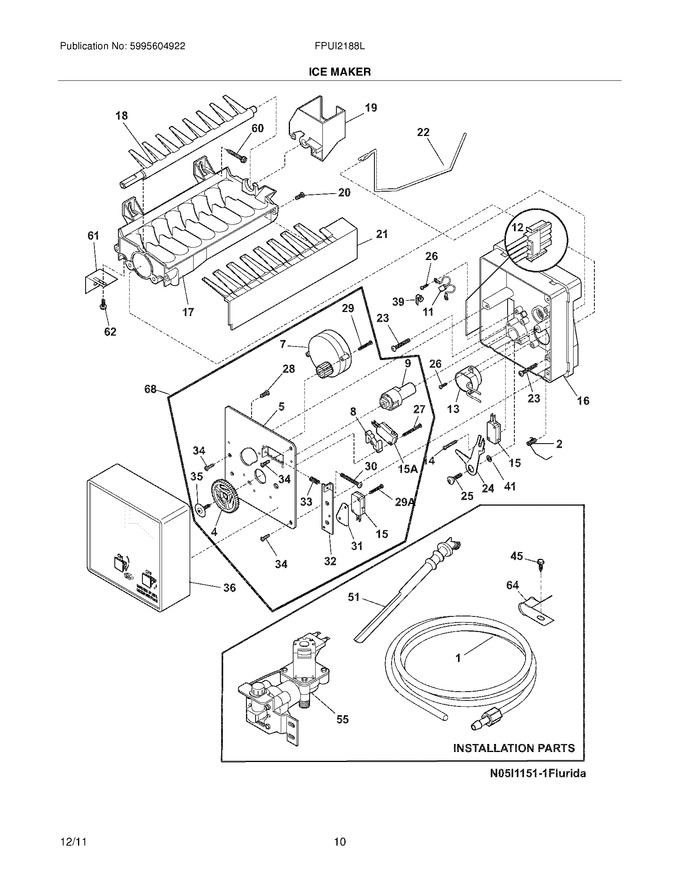

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
2	5304469396		Spring-shutoff Arm,ice Maker				$ 15.49
4	5304469403		Gear				$ 19.99
5	5304469399		Mounting Plate		Appelez-nous	-
7	5304469407		Motor-ice Maker				$ 158.38
8	5304469404		Spacer-hold Switch		Appelez-nous	-
9	5304469402		Cam				$ 23.99
11	5304455695		Thermal Cutoff,ice Maker ,complete Assy		Appelez-nous	-
13	5304469387		Thermostat Assy,ice Maker				$ 111.48
14	5304469394		Screw,no.5-24 X 3/4		Appelez-nous	-
16	5304469379		Housing,control				$ 89.62
18	5304469384		Ejector-ice				$ 58.83
19	5304469386		Bearing & Inlet,fill Cup				$ 14.49
20	5304469391		Screw,8-32 X 3/8		Appelez-nous	-
21	5304469378		Ice Stripper				$ 18.11
22	5304469377		Shut-off Arm				$ 34.60
23	5304469392		Screw,mold-to-support ,(2)		Appelez-nous	-
24	5304469382		Lever Arm				$ 22.89
25	5304469397		Screw,lever Arm/sprt		Appelez-nous	-
26	5304469393		Screw		Appelez-nous	-
27	5304469410		Screw,hold Switch Mtg ,(2)		Appelez-nous	-
28	5304469414		Screw,no.8-32 X 1/4``		Appelez-nous	-
29	5304469409		Screw		Appelez-nous	-
30	5304469408		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	5304469389		Spacer-switch		Appelez-nous	-
32	5304469400		Plate-valve Switch		Appelez-nous	-
33	5304469401		Spring,timing Adjust				$ 11.29
34	5304469380		Screw,no.8-10x1/2		Appelez-nous	-
35	5304469411		Screw		Appelez-nous	-
36	5304469385		Cover-ice Maker				$ 43.73
39	5304469383		Clamp		Appelez-nous	-
41	5304469381		Washer,flat		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
51	241796405		Tube-water Fill,extension   (Replaces: 241796401)				$ 18.43
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
61	218721500		Bracket-leveling,ice Maker   (Replaces: 5304469376)				$ 73.00
62	5304469395		Screw		Appelez-nous	-
64	5304455846		Clamp,.31 Id ,steel ,water Tube				$ 10.63
68	5304469398		Mounting Plate,assy				$ 189.79
29A	5304469412		Screw,no.4-24 X 3/4``				$ 6.84
F12	5304469390		Harness-wiring				$ 97.39
F15	5304469388		Switch-micro,2		Appelez-nous	-
F15A	5304469405		Switch-micro				$ 40.95
F17	5304469413		Mold-ice Maker,with Heater				$ 219.93
F55	242252603		Valve-water,single Solenoid , 60 Hz ,105/120 V   (Replaces: 241803701)			Immediately	$ 73.14
NI	5304456689		Washer   (Replaces: 5304456737)				$ 77.26
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	241798231		Ice Maker,radius Cube ,115 V ,svce   (Replaces: 241798201)			Immediately	$ 200.97
NI	5304456692		Washer		Appelez-nous	-
NI	5304456693		Nut,m 3.5				$ 13.46
NI	5304469406		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
