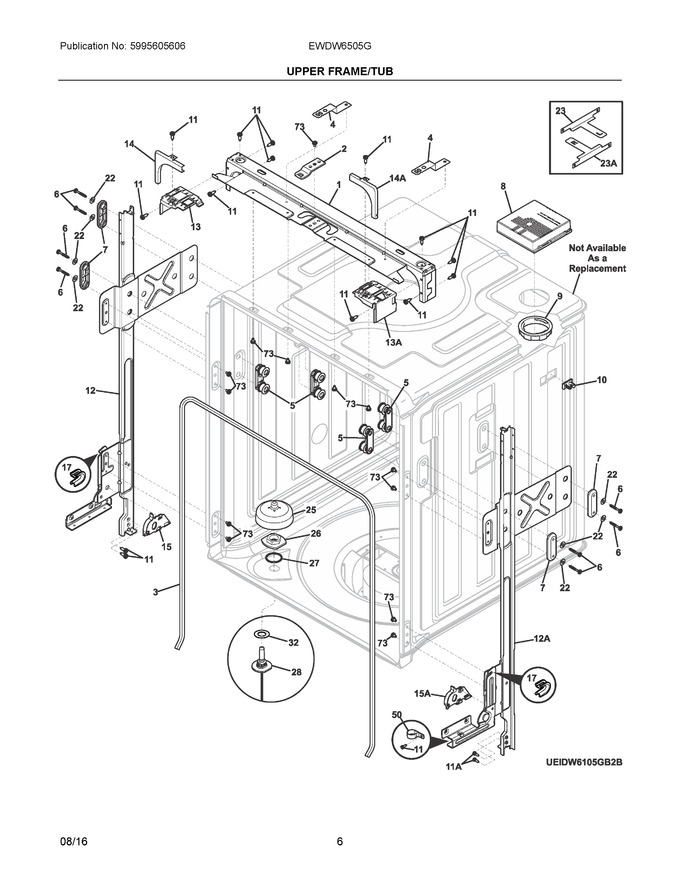

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154500701		Brace, Frame, Top		Appelez-nous	-
2	154511401		Strike, Door Latch				$ 42.79
3	154782201		Gasket, Tub		Appelez-nous	-
4	154657901		Clip, Cabinet Mtg., Top Mount, (2)				$ 9.14
5	154510702		Roller Assembly, Tub, (4), W/gasket				$ 18.29
6	154719001		Screw, Tub Roller, (8)				$ 8.56
7	154510601		Plate, Retainer, Outer, (2), Tub Roller				$ 7.56
8	154773401		Vent Assembly, Upper				$ 202.76
9	154622601		Bezel, Vent Assy, Upper				$ 22.84
10	154633501		Clip, Wiring Harness		Appelez-nous	-
11	154518301		Screw, 6 Lobe Recess, #8-18				$ 8.61
12	154774001		Leg And Hinge Assembly, Left Hand, Front				$ 136.50
13	154654401		Bracket, Cabinet Clip, Lh				$ 11.87
14	154502901		Trim, Corner, Lh				$ 12.10
15	154656801		Cover, Hinge Arm, Lh				$ 27.72
17	154671501		Bushing, Hinge Arm Cable, (2)				$ 6.71
22	5300809968		Washer				$ 43.38
23	154654601		Clip, Cabinet Mtg., Lh				$ 51.03
25	154764401		Float, Flood, W/magnet				$ 25.97
26	154506902		Nut, Float Switch				$ 15.18
27	154677201		Gasket, Float Switch				$ 8.94
28	154763901		Switch Assembly, Reed, Float, Water Level				$ 49.16
32	154506801		Washer, Float Switch				$ 3.05
50	154690101		Clamp, Wiring		Appelez-nous	-
73	154518401		Screw, 6 Lobe Recess, #8-32				$ 10.24
11A	134154100		Screw, #10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12A	154774101		Leg And Hinge Assembly, Right Hand, Front				$ 127.05
13A	154654501		Bracket, Cabinet Clip, Rh				$ 11.55
14A	154502001		Trim, Corner, Rh				$ 14.65
15A	154656901		Cover, Hinge Arm, Rh				$ 30.29
23A	154654701		Clip, Cabinet Mtg., Rh				$ 49.40
NI	154679701		Clip, Insulation, (2)				$ 6.93
NI	154733001		Seal, Tub Corner, Rh Lower				$ 21.97
NI	154733101		Seal, Tub Corner, Lh Lower				$ 23.63
NI	154623602		Insulation, Blanket				$ 142.33
NI	154662101		Cabinet Seal Kit				$ 82.69
NIA	154691601		Cover, Connector, Vent Assy				$ 13.41
NIA	154657201		Screw, Cabinet Clamp, (2)				$ 9.66
