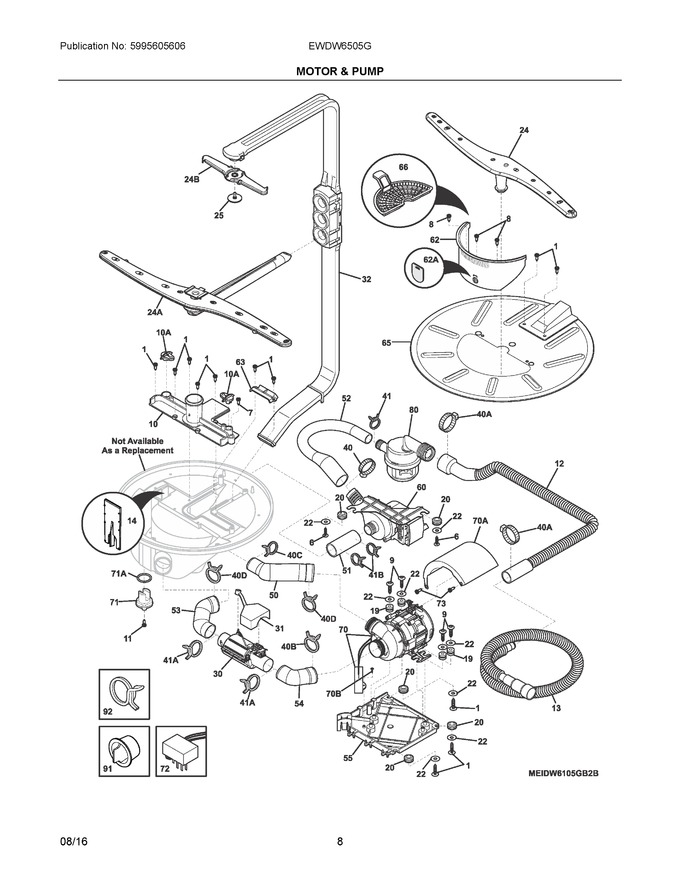

05 - Motor & Pump


06 - Lower Frame


07 - Racks


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154518001		Screw, Pan Head, #10-16 X .8				$ 10.54
6	154518301		Screw, 6 Lobe Recess, #8-18				$ 8.61
7	154673501		Screw, 6 Lobe Recess, #10 Hi Lo				$ 10.29
8	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
9	154625701		Screw, #8-18 Hi Lo		Appelez-nous	-
10	154763201		Support, Lower Spray Arm				$ 60.59
11	154779601		Screw, Ph, 8-10, (2)				$ 1.42
12	154654801		Hose, Drain, Intermediate				$ 49.40
13	5304521094		Hose, Drain, Main   (Replaces: 154654901)			Immediately	$ 49.28
14	154793601		Bracket, Drain				$ 16.54
19	154730301		Grommet, Vibration, (4)		Appelez-nous	-
20	154740001		Grommet, Vibration, (5)				$ 15.44
22	5300809968		Washer				$ 43.38
24	154755501		Spray Arm, Assembly, Lower				$ 58.56
25	154650102		Pin, Spray Arm, Upper				$ 9.45
30	154503701		Heater, Inline, Water, 1200w				$ 71.66
31	154622901		Cover, Inline Heater		Appelez-nous	-
32	154515602		Tubing Assembly, Delivery, W/check Valve				$ 154.14
40	154692901		Clamp, Hose, 1.64" Open, Worm Gear				$ 6.83
41	154348401		Clamp, Hose, Red, Push Spring, (3)				$ 32.96
50	154760501		Hose, Sump To, Motor, Circulation				$ 11.20
51	154757702		Hose, Sump To, Drain Pump				$ 12.01
52	154622402		Hose, Drain Pump, To Drain Valve				$ 61.16
53	154803401		Hose, Sump To, Inline Heater				$ 25.20
54	154803501		Hose, Inline Heater, To Motor				$ 20.27
55	154677101		Plate, Motor Mounting				$ 62.23
60	154757901		Pump Assembly, Drain, W/bracket				$ 126.86
62	154600702		Filter Assembly, Vertical, W/flapper				$ 9.40
63	154513501		Cover, Delivery Tube				$ 11.66
65	154283005		Filter Assembly, Coarse Soil, W/chimney   (Replaces: 154624901)				$ 253.03
66	154740901		Trap, Glass				$ 23.36
70	154614002		Motor & Pump Assy, Circulation, W/capacitor			Immediately	$ 354.23
71	154473901		Sensor, Turbidity				$ 213.26
72	154655901		Sensor, Leak Detector				$ 105.61
73	154518401		Screw, 6 Lobe Recess, #8-32				$ 10.24
80	154622001		Drain Valve, Assembly, Stepper				$ 186.52
91	154676701		Plug, Drain Hose				$ 5.57
92	154348502		Clamp, Red, Hose				$ 9.41
10A	154763301		Clamp, Filter, (2)				$ 13.13
24A	154508201		Spray Arm, Assembly, Middle, W/manifold				$ 44.10
24B	154649502		Spray Arm, Assembly, Upper				$ 23.63
40A	154380601		Clamp, Hose, 1.5" Open, Worm Gear, (5)				$ 73.71
40B	154787001		Clamp, Spring, Sae 28		Appelez-nous	-
40C	154786701		Clamp, Spring, 1.312", Sae 21				$ 10.44
40D	154786901		Clamp, Spring, 1.625", Sae 26				$ 13.57
41A	154786801		Clamp, Spring, Sae 25, Hose				$ 14.12
41B	154691501		Clamp, Spring, (2)				$ 8.13
62A	154511601		Flapper, Drain Check				$ 19.06
70A	154656401		Shield, Motor, Circulation		Appelez-nous	-
70B	154614401		Screw, Capacitor Mtg.		Appelez-nous	-
71A	154691901		O-ring, Turbidity				$ 42.66
NIA	154833101		Harness, Wiring, Turbid Module				$ 18.74
NIA	154657201		Screw, Cabinet Clamp, (2)				$ 9.66
NIA	154832701		Support, Inline Heater		Appelez-nous	-
NIB	154819101		Clamp, Drain Hose, To Cabinet				$ 11.50
NIB	154836801		Nut, Push, 7/16", Wire Form Ret.		Appelez-nous	-
