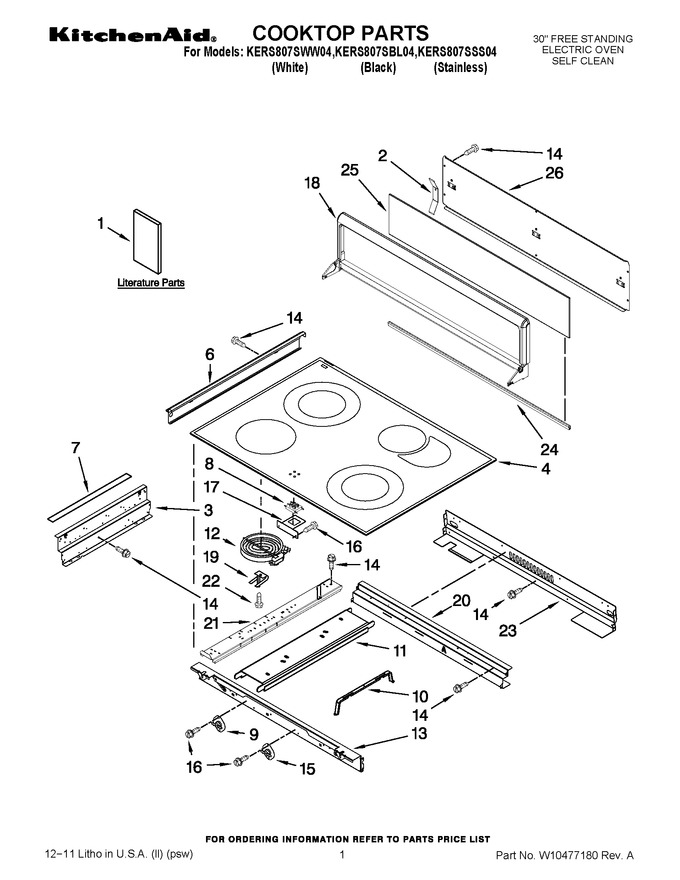

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10075750 | Instructions, Installer |
|
- | |||||
| 1 | W10246119 | Installation Instructiions |
|
- | |||||
| 1 | W10246111 | Use & Care Guide |
|
- | |||||
| 1 | W10220962 | Tech Sheet |
|
- | |||||
| 1 | 9763467 | Easy Set Guide |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 9762768 | Clip, Retainer |
|
$ 38.30 | |||||
| 3 | 9761784 | Frame, Cooktop Side |
|
- | |||||
| 4 | W10110274 | Cooktop (white) |
|
- | |||||
| 4 | W10110276 | Cooktop (black/stainless) |
|
- | |||||
| 6 | W10140550 | Trim, Cooktop Right (stainless) |
|
$ 116.16 | |||||
| 6 | W10110682 | Trim, Cooktop Left (black) |
|
$ 189.56 | |||||
| 6 | W10110687 | Trim, Cooktop Right (black) |
|
$ 187.68 | |||||
| 6 | W10110685 | Trim, Cooktop Right (white) |
|
$ 200.89 | |||||
| 6 | W10140549 | Trim, Cooktop Left (stainless) |
|
$ 121.97 | |||||
| 6 | W10110680 | Trim, Cooktop Left (white) |
|
$ 191.25 | |||||
| 7 | W10076030 | Gasket |
|
$ 78.51 | |||||
| 8 | 8523739 | Light, Indicator |
|
$ 120.71 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | 9757825 | Rail, Element Center |
|
- | |||||
| 12 | W10248257 | Element, Surface ((rr)1800/1000w) |
|
$ 150.74 | |||||
| 12 | WPW10275049 | Element, Surface ((rr&lr)2500/1200w) (Replaces: W10275049) |
|
Immediately | $ 282.81 | ||||
| 12 | WP8273993 | Element, Surface ((lf)1800w) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 13 | 9761423 | Frame, Cooktop Front |
|
$ 43.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | WP3179559 | Screw (Replaces: 3179559) |
|
$ 61.32 | |||||
| 17 | 9758799 | Bracket, Indicator Lamp |
|
$ 47.83 | |||||
| 18 | W10109750 | Backsplash (black) |
|
$ 96.30 | |||||
| 18 | W10156267 | Backsplash (stainless) |
|
$ 112.79 | |||||
| 18 | W10109740 | Backsplash (white) |
|
$ 90.41 | |||||
| 19 | 9759094 | Spring,locator |
|
$ 6.34 | |||||
| 20 | 9761783 | Frame, Cooktop Rear |
|
- | |||||
| 21 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 23 | 9761724 | Cover, Cooktop Rear |
|
$ 35.73 | |||||
| 24 | 9763483GY | Gasket, Backsplash (white) |
|
$ 47.90 | |||||
| 24 | 9763483BL | Gasket, Backsplash (black/stainless) |
|
$ 104.52 | |||||
| 25 | 9761749WH | Glass, Backsplash (white) |
|
$ 164.35 | |||||
| 25 | 9761749BL | Glass, Backsplash (black/stainless) |
|
$ 142.53 | |||||
| 26 | W10153092 | Panel, Backsplash |
|
$ 41.78 |
