SELECT A DIAGRAM
01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts

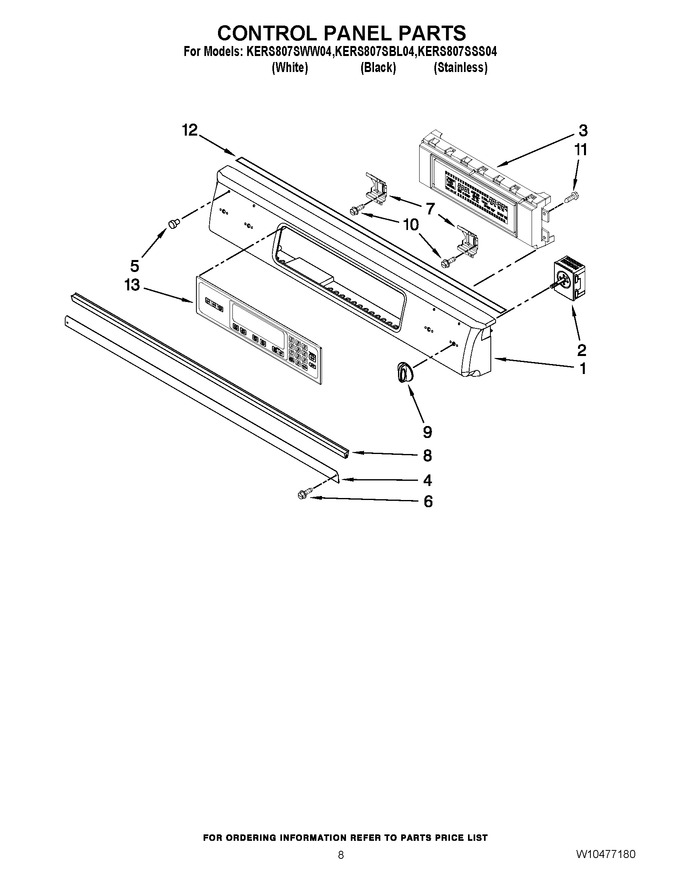

05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9761551WH | Control Panel (white) |
|
$ 133.59 | |||||
| 1 | W10156268 | Control Panel (stainless) |
|
$ 175.92 | |||||
| 1 | 9761551BL | Control Panel (black) |
|
$ 135.85 | |||||
| 2 | WP9763761 | Switch, Infinite (rf) (Replaces: 9763761) |
|
Immediately | $ 196.75 | ||||
| 2 | WP9763762 | Switch, Infinite (lr,lf,rr) (Replaces: 9763762) |
|
Immediately | $ 203.66 | ||||
| 3 | W10181439 | Control, Electric |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | WP3196068 | Lens, Indictor (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 6 | WP3179559 | Screw (Replaces: 3179559) |
|
$ 61.32 | |||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | WPW10193253 | Knob Lr,lf,rr (white) (Replaces: W10193253) |
|
Immediately | $ 19.84 | ||||
| 9 | WPW10193257 | Knob Rf (white) (Replaces: W10193257) |
|
Immediately | $ 18.67 | ||||
| 9 | WPW10193259 | Knob Rf (black) (Replaces: W10193259) |
|
$ 18.54 | |||||
| 9 | WPW10156260 | Knob Lr, Lf, Rr (stainless) (Replaces: W10156260) |
|
Immediately | $ 59.97 | ||||
| 9 | W10156261 | Knob Rf (stainless) |
|
$ 16.61 | |||||
| 9 | WPW10193255 | Knob Lr,lf,rr (black) (Replaces: W10193255) |
|
$ 25.86 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 11 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 12 | W10109430 | Gasket, Console |
|
$ 63.07 | |||||
| 13 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 405.23 |
