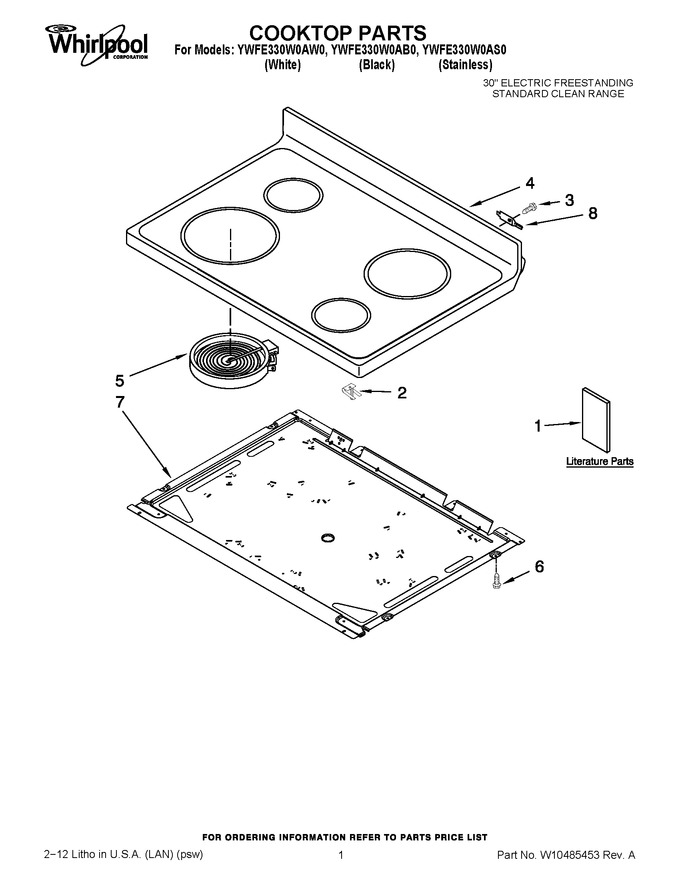

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions Installations |
|
- | |||||
| 1 | W10394386 | Owners Manual |
|
- | |||||
| 1 | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1 | W10384462 | Tech Sheet (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10472025 | Cooktop (white) (Replaces: W10380658) |
|
$ 508.45 | |||||
| 4 | W10472027 | Cooktop (black) (Replaces: W10380659) |
|
$ 506.29 | |||||
| 5 | WPW10178016 | Element, Surface (3000/1400w-lf) (Replaces: W10178016) |
|
Immediately | $ 362.53 | ||||
| 5 | W11171119 | Element, Surface (1200 W - Lr & Rr) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 5 | WP8273993 | Element, Surface (1800 W - Rf) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 122.99 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 |
