01 - Cooktop Parts

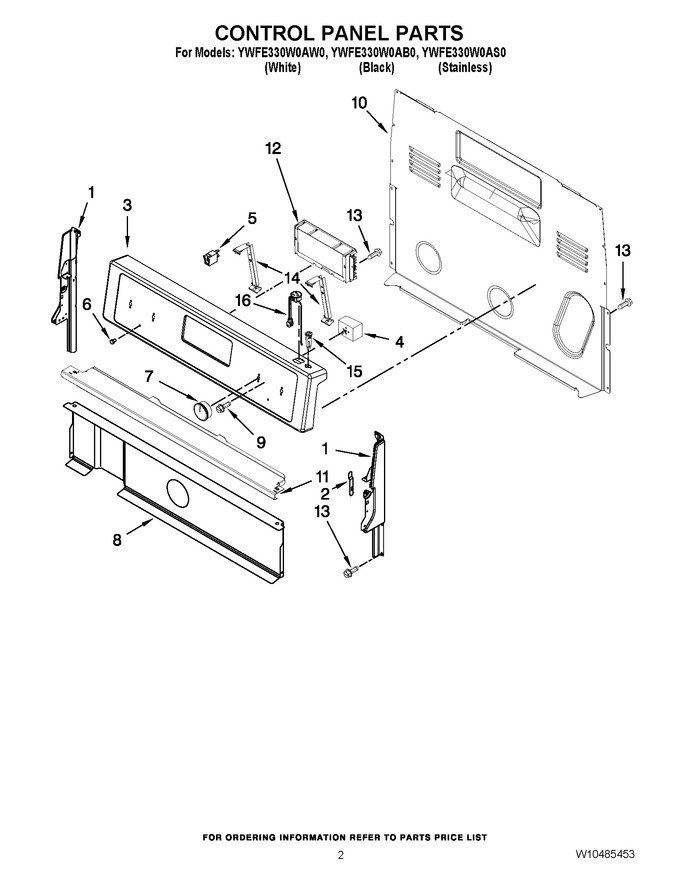

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 36.39 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 3 | W10714879 | Panel, Backguard (stainless) (Replaces: W10339406) |
|
$ 164.53 | |||||
| 3 | W10370105 | Panel, Backguard (black) |
|
- | |||||
| 3 | W10714870 | Panel, Backguard (white) (Replaces: W10370107) |
|
$ 140.72 | |||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148953) |
|
Immediately | $ 47.15 | ||||
| 4 | WPW10167742 | Switch, Infinite (left Front) (Replaces: W10167742) |
|
Immediately | $ 106.38 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WPW10490037 | Knob (white) (Replaces: W10339426) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10490038 | Knob (black) (Replaces: W10339425) |
|
$ 18.46 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 84.73 | |||||
| 12 | W10424885 | Control, Range (lcc190) (stainless) |
|
$ 444.43 | |||||
| 12 | W10813969 | Control, Range (lcc190) (black) (Replaces: W10348617) |
|
$ 416.48 | |||||
| 12 | W10813969 | Control, Range (lcc190) (white) (Replaces: W10348618) |
|
$ 416.48 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | W11230932 | Brkt-mntg, Eoc (Replaces: W10324410) |
|
Immediately | $ 72.69 | ||||
| 15 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 15 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 16 | W10849725 | Receptacle, Fused (white) (Replaces: W10203476) |
|
Immediately | $ 72.71 | ||||
| 16 | W10861164 | Receptacle, Fused (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 |
