SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

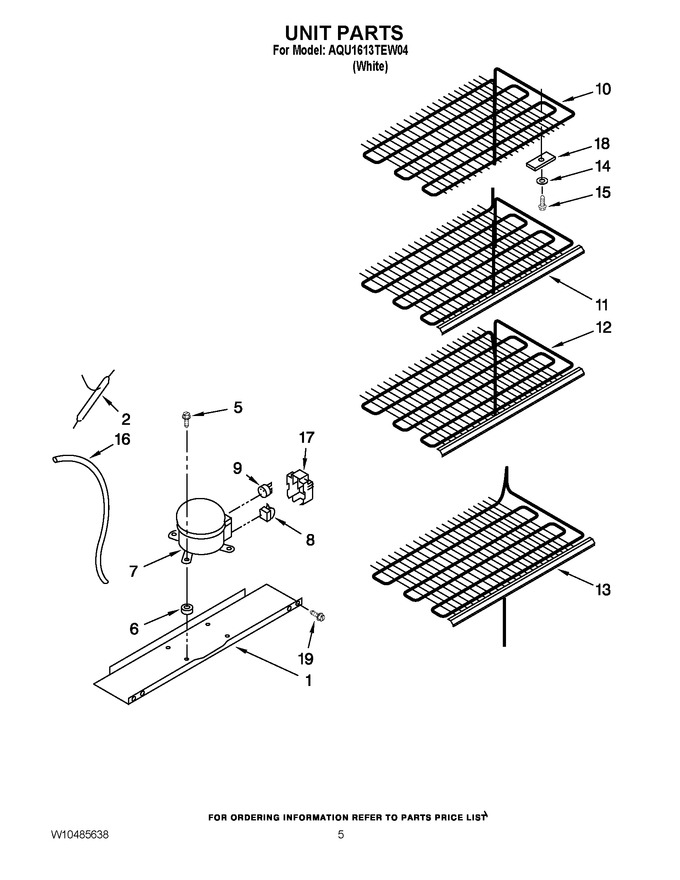

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10470130		Pan, Compressor Mounting		Appelez-nous	-
2	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
5	8210220		Screw, Compressor Mounting   (Replaces: 2-82082-001)		Appelez-nous	-
6	WP2163786		Grommet   (Replaces: 13146462)				$ 7.16
7	W10309989		Compressor   (Replaces: 4-32972-141)			Immediately	$ 591.26
8	WPW10189190		Relay   (Replaces: 2-35154-010)			Immediately	$ 118.16
9	2-34286-039		Overload				$ 155.37
10	4-82413-007		Evaporator Top		Appelez-nous	-
11	4-82194-007		Evaporator Shelf		Appelez-nous	-
12	4-82195-007		Evaporator Shelf		Appelez-nous	-
13	4-82197-006		Evaporator Bott		Appelez-nous	-
14	3-80681-133		Washer		Appelez-nous	-
15	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 3-24004-109)				$ 7.25
16	2-82030-005		Heat Exchanger				$ 127.33
17	W10393770		Cover   (Replaces: 3-35171-003)				$ 98.67
18	1-80308-101		Clamp				$ 67.64
19	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
NI	N/P		Refrigerant Charge (6.9 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
