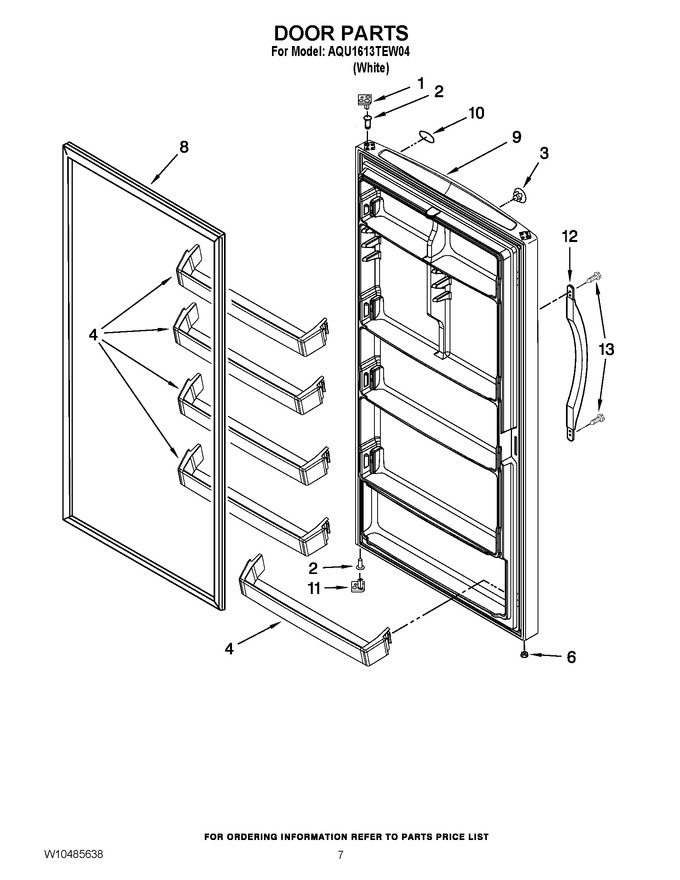

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2-81124-001		Stop, Door (top) (natural)				$ 31.15
2	3-60199-001		Hinge, Bushing		Appelez-nous	-
3	WP2189000		Plug-handle   (Replaces: 1-60121-001)			Immediately	$ 6.66
4	4-65427-001		Rail, Door (5)				$ 37.33
6	3-24898-007		Vent Plug				$ 9.72
8	WP4-65151-001		Gasket, Door   (Replaces: 4-65151-001)				$ 303.88
9	4-82827-012		Door Assembly (includes Interior Liner)		Appelez-nous	-
10	2-82534-001		Nameplate				$ 43.08
11	2-81124-001		Stop, Door (bottom) (natural)				$ 31.15
12	3-82013-003		Handle Assembly				$ 69.49
13	W11772394		Screw, Handle   (Replaces: 3-24004-091)			Immediately	$ 10.94
