01 - Cabinet Parts


02 - Liner Parts

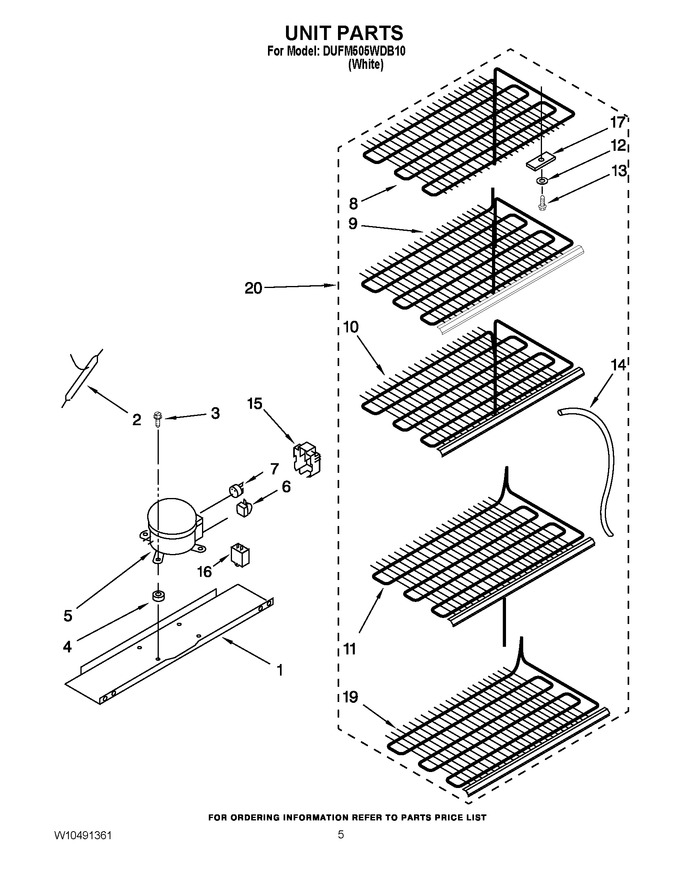

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10470130		Pan, Compressor Mouting		Appelez-nous	-
2	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
3	W11233072		Screw, Compressor Mouting   (Replaces: 3-80732-014)			Immediately	$ 12.62
4	1-32965		Grommet		Appelez-nous	-
5	W10355489		Compressor   (Replaces: 4-32812-263)				$ 581.58
6	3-35576-002		Relay		Appelez-nous	-
7	WP2149959		Overload   (Replaces: 2-34286-019)				$ 120.05
8	4-82413-008		Evaporator, Top		Appelez-nous	-
9	4-82194-009		Evaporator Shelf		Appelez-nous	-
10	4-82195-009		Evaporator Shelf		Appelez-nous	-
11	4-82196-004		Evaporator Shelf		Appelez-nous	-
12	3-80681-133		Washer		Appelez-nous	-
13	WP3-24004-109		Screw, Evaporator Mouting   (Replaces: 3-24004-109)				$ 7.25
14	2-82030-005		Heat Exchanger				$ 127.33
15	2217635		Cover   (Replaces: 4-34046-011)		Appelez-nous	-
16	3-35956-013		Capacitor				$ 103.82
17	1-80308-101		Clamp				$ 67.64
19	4-82197-008		Evaporator Shelf, Bottom		Appelez-nous	-
20	4-82416-003		Evaporator Assy		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.9 Oz. R-134a))		Appelez-nous	-
