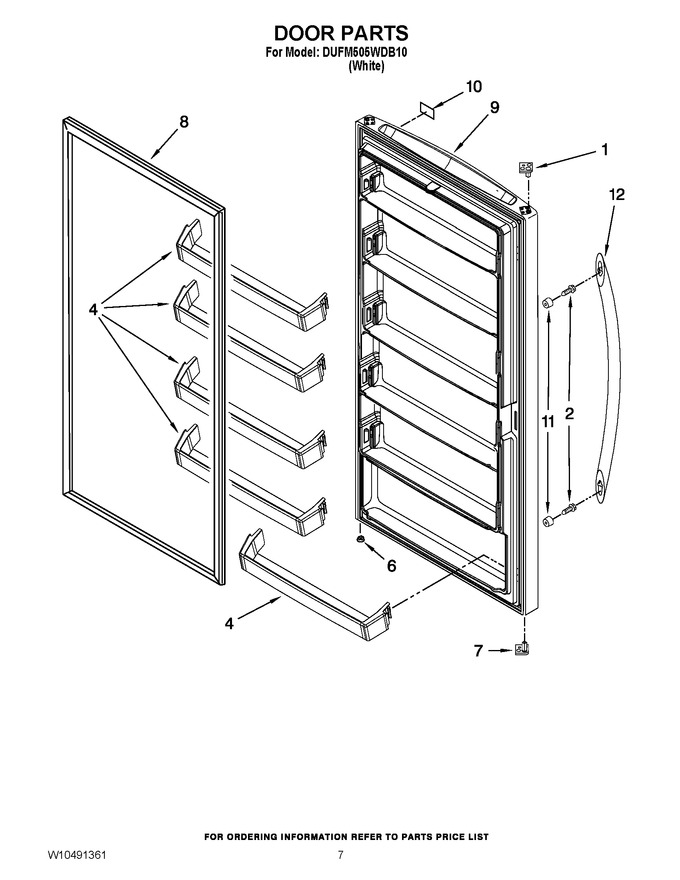

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2-81124-001		Stop, Door				$ 31.15
2	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 10.94
4	4-65427-001		Rail, Door (shelf 5)				$ 37.33
6	3-24898-007		Vent				$ 9.72
7	2-81124-001		Stop, Door				$ 31.15
8	WP4-65151-002		Gasket, Door   (Replaces: 4-65151-002)				$ 323.25
9	4-82827-036		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
10	3-35752-001		Nameplate		Appelez-nous	-
11	3-65447-001		Bushing, Handle				$ 14.86
12	3-82597-002		Handle Assembly				$ 76.51
