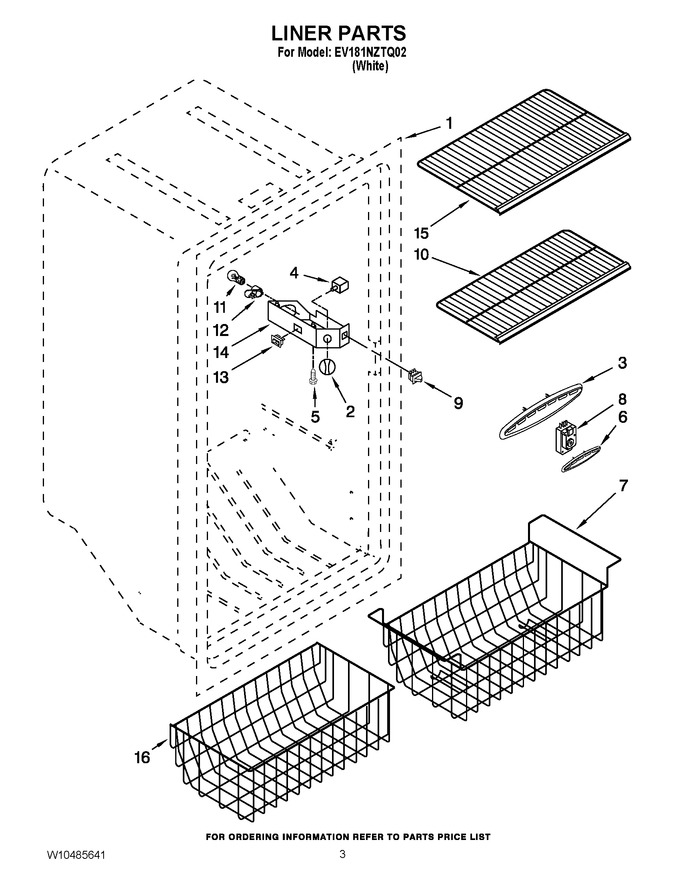

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control				$ 25.80
3	4-82556-002		Air Diffuser, Upr		Appelez-nous	-
4	WP4-83053-002		Thermostat   (Replaces: 4-83053-002)				$ 220.05
5	3-24004-092		Screw				$ 4.28
6	4-82573-002		Air Diffuser, Lwr		Appelez-nous	-
7	4-60064-002		Basket, Wire		Appelez-nous	-
8	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 170.69
9	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 33.51
10	4-60637-001		Shelf, Lower Wire				$ 53.97
11	40A15		Bulb-light   (Replaces: 1-34291-002)			Immediately	$ 1.98
12	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
13	3-82642-002		Switch, Alarm (illuminated)				$ 27.44
14	4-82389-005		Box, Control				$ 102.20
15	WP4-60638-001		Shelf, Upper Wire   (Replaces: 4-60638-001)				$ 123.73
16	4-82880-001		Basket, Wire		Appelez-nous	-
