01 - Cabinet Parts
02 - Liner Parts

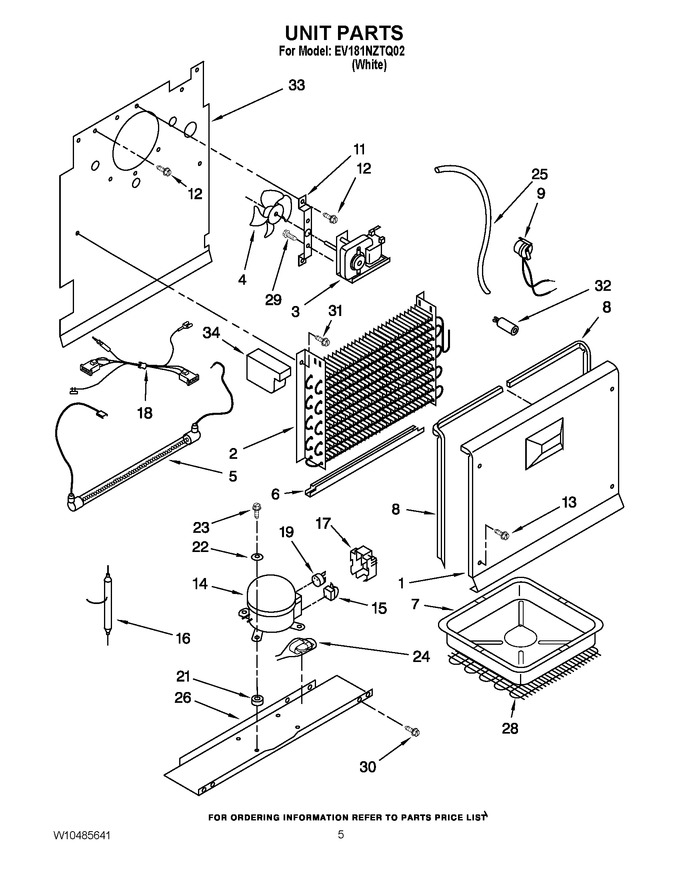

03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-82699-001 | Cover, Evaporator |
|
$ 83.56 | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4-81546) |
|
$ 385.21 | |||||
| 3 | WP3-60336-001 | Motor, Fan (Replaces: 3-60336-001) |
|
Immediately | $ 291.24 | ||||
| 4 | WPW10445742 | Blade, Fan (Replaces: W10445742) |
|
Immediately | $ 9.05 | ||||
| 5 | WP3-80405-003 | Heater, Defrost (Replaces: 3-80405-003) |
|
$ 180.25 | |||||
| 6 | 3-82697-001 | Shield, Heater |
|
- | |||||
| 7 | 4-82674-001 | Pan, Drain |
|
- | |||||
| 8 | 3-60180-002 | Gasket, Cover Evaporator (left) |
|
$ 24.93 | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right) (Replaces: 3-60180-001) |
|
$ 215.10 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 1-81801-001) |
|
Immediately | $ 111.32 | ||||
| 11 | 2-80028-101 | Bracket, Motor |
|
$ 84.58 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 3-80732-004) |
|
$ 56.93 | |||||
| 13 | W10451793 | Screw (4) |
|
- | |||||
| 14 | W10309994 | Compressor (includes Items 15,16,17,19 & 21) (Replaces: 4-32972-143) |
|
Immediately | $ 551.61 | ||||
| 15 | WPW10189190 | Relay (Replaces: 2-35154-010) |
|
Immediately | $ 118.16 | ||||
| 16 | 4007A | Drier (Replaces: 3-34960-001) |
|
Immediately | $ 13.55 | ||||
| 17 | W10393770 | Cover (Replaces: 3-35171-003) |
|
$ 98.67 | |||||
| 18 | 4-81785-001 | Harness, Fan |
|
- | |||||
| 19 | WP2183456 | Overload (Replaces: 2-34286-037) |
|
$ 126.16 | |||||
| 21 | WP2163786 | Compressor, Grommet (Replaces: 13146462) |
|
$ 7.16 | |||||
| 22 | 3-80681-103 | Washer |
|
- | |||||
| 23 | 8210220 | Bolt, Compressor (Replaces: 2-82082-001) |
|
- | |||||
| 24 | 3-82728-001 | Alarm (buzzer) |
|
$ 175.86 | |||||
| 25 | 2-82072-003 | Exchanger, Heat |
|
- | |||||
| 26 | 4-82684-003 | Pan, Compressor |
|
$ 55.94 | |||||
| 28 | W10451951 | Condenser (Replaces: 4-82234-002) |
|
$ 257.77 | |||||
| 29 | WP489491 | Screw (Replaces: 3-24004-079) |
|
$ 6.26 | |||||
| 30 | WP3-24838-048 | Screw (Replaces: 3-24838-048) |
|
$ 7.00 | |||||
| 31 | WP3-24004-109 | Screw (Replaces: 3-24004-109) |
|
$ 7.25 | |||||
| 32 | 3-23995-014 | Grommet |
|
- | |||||
| 33 | 4-80504-101 | Plate, Evaporator Mount |
|
$ 109.02 | |||||
| 34 | 1-80252-101 | Block, Foam |
|
$ 5.86 | |||||
| NI | N/P | Refrigerant Charge (6.2 Oz. (r134a)) |
|
- |
