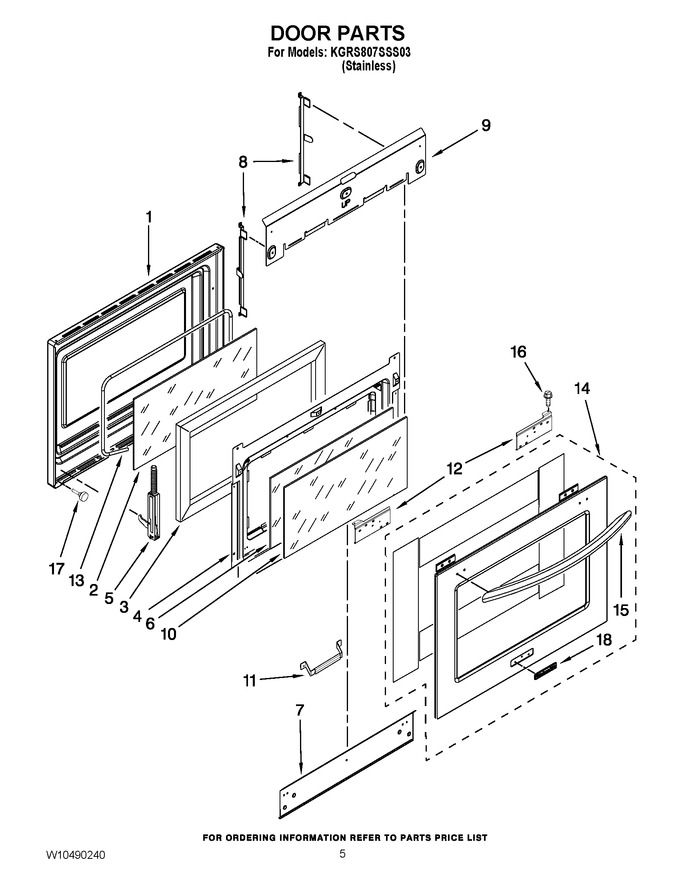

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Panel, Door (Replaces: 9759413) |
|
$ 317.54 | |||||
| 2 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 3 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 4 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 5 | WP9760574 | Hinge, Oven Door (left) (Replaces: 9760574) |
|
Immediately | $ 60.36 | ||||
| 5 | WP9760579 | Hinge, Oven Door (right) (Replaces: 9760579) |
|
Immediately | $ 64.35 | ||||
| 6 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 7 | 4457114 | Shield, Heat Bottom |
|
$ 186.68 | |||||
| 8 | WP9759229 | Bracket, Glass Side (Replaces: 9759229) |
|
$ 160.71 | |||||
| 9 | 4457104 | Shield, Heat Top |
|
$ 33.62 | |||||
| 10 | WP9759225 | Glass, Inner Door (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 11 | 9759230 | Bracket, Central |
|
$ 36.30 | |||||
| 12 | W10246114 | Bracket, Handle (right) |
|
$ 41.38 | |||||
| 12 | W10246113 | Bracket, Handle (left) |
|
$ 28.40 | |||||
| 13 | 8522415 | Seal, Window |
|
$ 75.50 | |||||
| 14 | W10155557 | Assembly, Door Kit |
|
$ 481.06 | |||||
| 15 | W10448670 | Handle, Door |
|
$ 115.38 | |||||
| 16 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 8.50 | |||||
| 17 | 4448520 | Bumper, Door |
|
$ 19.07 | |||||
| 18 | WPW10243391 | Badge (Replaces: W10243391) |
|
$ 49.98 |
