SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Triple Crown Burner


09 - Control Panel Parts


10 - Optional Parts (not Included)

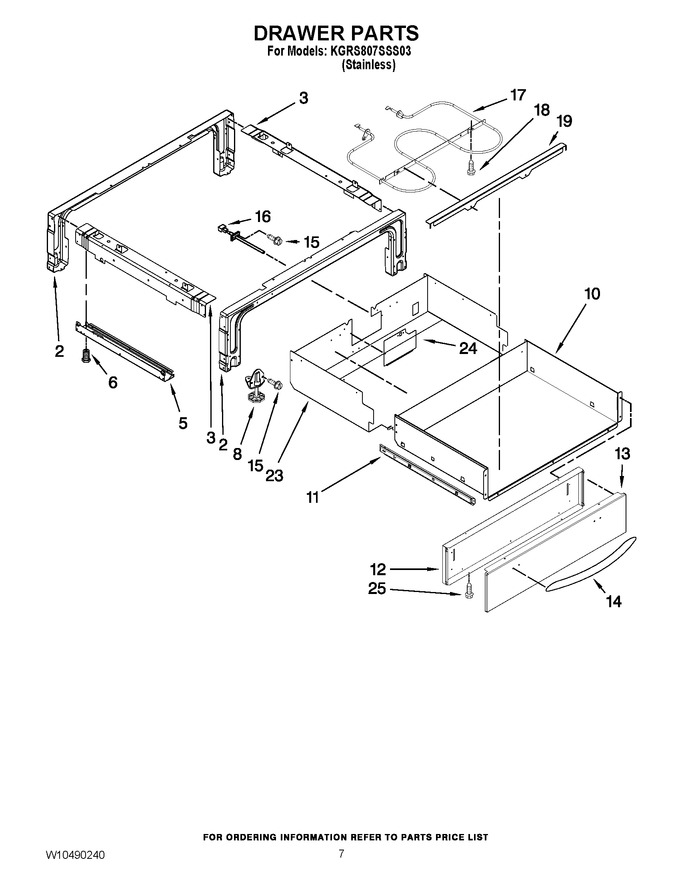

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453721		Brace, Drawer (left)				$ 34.27
3	4453720		Brace, Drawer (right)				$ 34.27
5	9759953		Side, Base (right)				$ 108.70
5	9759954		Side, Base (left)				$ 88.47
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 7.07
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 74.67
10	W10164163		Drawer				$ 163.91
11	WPW10155632		Guide, Roller Includes Roller (left)   (Replaces: W10155632)				$ 93.18
11	W10155633		Guide, Roller Includes Roller (right)				$ 60.39
12	W10164169		Panel, Drawer		Appelez-nous	-
13	W10203763		Front, Drawer				$ 99.87
14	W10292374		Handle, Drawer				$ 100.87
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
16	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 172.85
17	W10207401		Element, Warming				$ 105.28
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
19	9758676		Support, Element		Appelez-nous	-
23	9761796		Enclosure, Warming Drawer				$ 78.12
24	W10153099		Cover, Access		Appelez-nous	-
25	WP3400805		Screw   (Replaces: 3400805)				$ 6.47

    View Diagram in Separate Window       Print Part List
