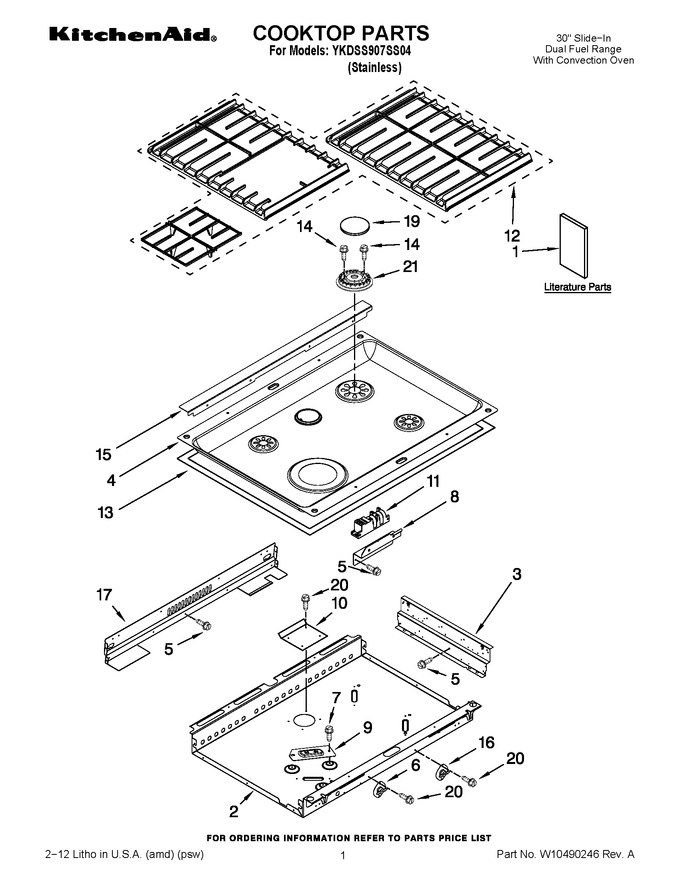

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10440543 | Installation Instructions |
|
- | |||||
| 1 | W10449873 | Use & Care Guide |
|
- | |||||
| 1 | W10112147 | Tech Sheet (english) |
|
- | |||||
| 1 | W10112148 | Tech Sheet (french) |
|
- | |||||
| 2 | W10208808 | Burner Box |
|
- | |||||
| 3 | 9761784 | Bracket, Mounting |
|
- | |||||
| 4 | W10175861 | Cooktop |
|
$ 203.16 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | WP9757807 | Thermostat (Replaces: 9757807) |
|
Immediately | $ 96.19 | ||||
| 7 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 8 | W10108030 | Bracket, Spark Module |
|
- | |||||
| 9 | 9763445 | Bracket, Burner |
|
- | |||||
| 10 | 8301084 | Shield, Heat |
|
- | |||||
| 11 | WPW10110491 | Module, Spark (Replaces: W10110491) |
|
Immediately | $ 276.35 | ||||
| 12 | W10338795 | Kit, Burner Grate |
|
Immediately | $ 321.99 | ||||
| 13 | W10109920 | Gasket |
|
$ 43.42 | |||||
| 14 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 15 | WP9763436 | Cover, Top Rear (Replaces: 9763436) |
|
$ 127.77 | |||||
| 16 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 17 | 9761755 | Cover, Cooktop Rear |
|
$ 53.38 | |||||
| 19 | 9763503CB | Kit, Burner Cap |
|
$ 47.00 | |||||
| 20 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 21 | WPW10406243 | Head, Burner (small (lr,rf)) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 21 | WPW10406797 | Head, Burner (large (rr)) (Replaces: 8286182) |
|
$ 79.64 |
