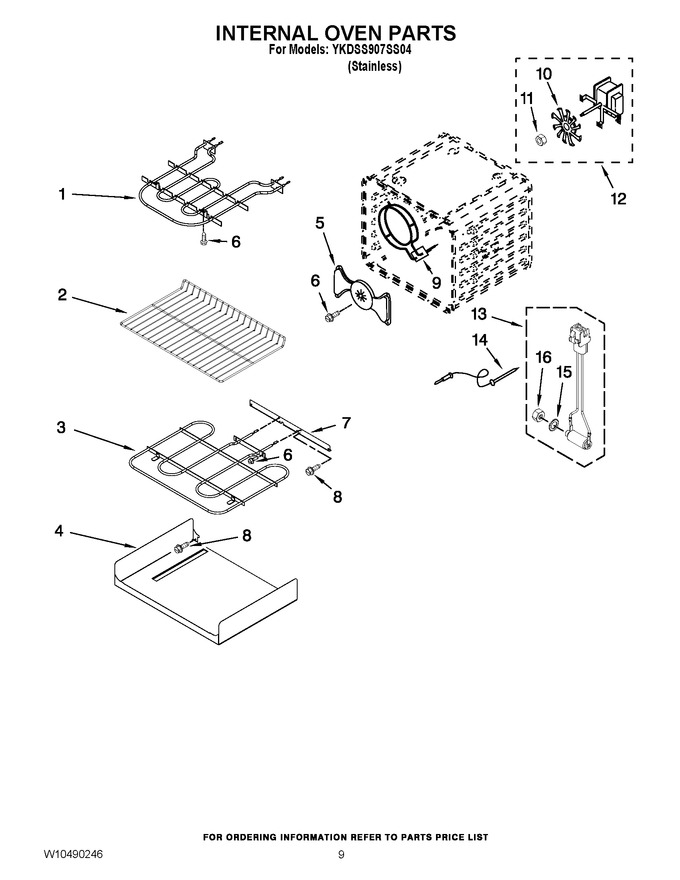

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 206.10 | ||||
| 2 | WPW10179152 | Rack, Oven (Replaces: W10179152) |
|
Immediately | $ 107.65 | ||||
| 3 | WPW10207398 | Element, Bake (Replaces: W10207398) |
|
Immediately | $ 119.70 | ||||
| 4 | 4455037 | Tray, Bake Hidden |
|
$ 73.11 | |||||
| 5 | W10860133 | Cover, Fan (Replaces: W10160868) |
|
$ 219.39 | |||||
| 6 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 7 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 9 | WP9760769 | Element, Convection (Replaces: 9760769) |
|
Immediately | $ 289.61 | ||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 11 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 18.67 | |||||
| 12 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 193.17 | ||||
| 13 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 14 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 15 | WP9755547 | Lock Washer (Replaces: 9755547) |
|
$ 5.49 | |||||
| 16 | WP9755546 | Hex Nut (Replaces: 9755546) |
|
$ 6.26 |
