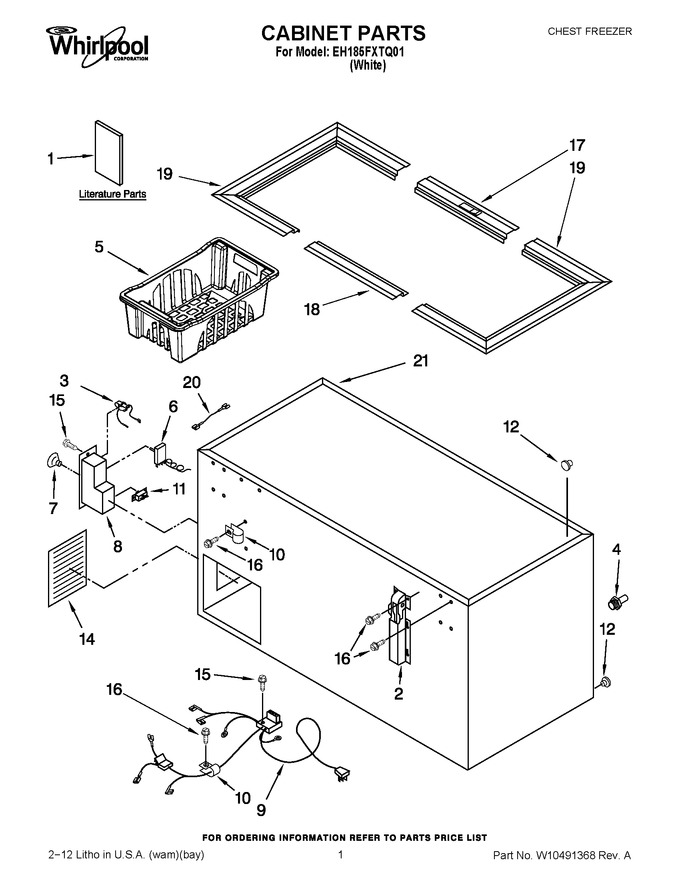

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326796		Owners Manual		Appelez-nous	-
1	W10326821		Energy Guide		Appelez-nous	-
2	4-34582-012		Hinge, Assembly				$ 142.32
3	2-32304		Alarm (buzzer)				$ 26.61
4	W11663505		Drain, Adapter   (Replaces: 1-33178)				$ 15.45
5	W11553315		Basket   (Replaces: 4-36033-002)				$ 88.53
6	4-35940-004		Thermostat				$ 228.09
7	4-36019-001		Knob, Thermostat		Appelez-nous	-
8	4-35976-001		Control Box				$ 34.65
9	4-35521-002		Harness, Wiring				$ 160.17
10	488946		Clip   (Replaces: 4356671)				$ 18.41
11	2-32307		Switch, Alarm				$ 76.86
12	3-33211-001		Plug, Drain				$ 10.63
14	4-35099-001		Access Panel		Appelez-nous	-
15	3-24004-049		Screw		Appelez-nous	-
16	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
17	4-35011-004		Front, Breaker Strip				$ 75.80
18	4-35010-004		Rear, Breaker Strip		Appelez-nous	-
19	4-35397-004		End, Breaker Strip (2)		Appelez-nous	-
20	3-30389-079		Wire, Lead (optional)		Appelez-nous	-
21	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
