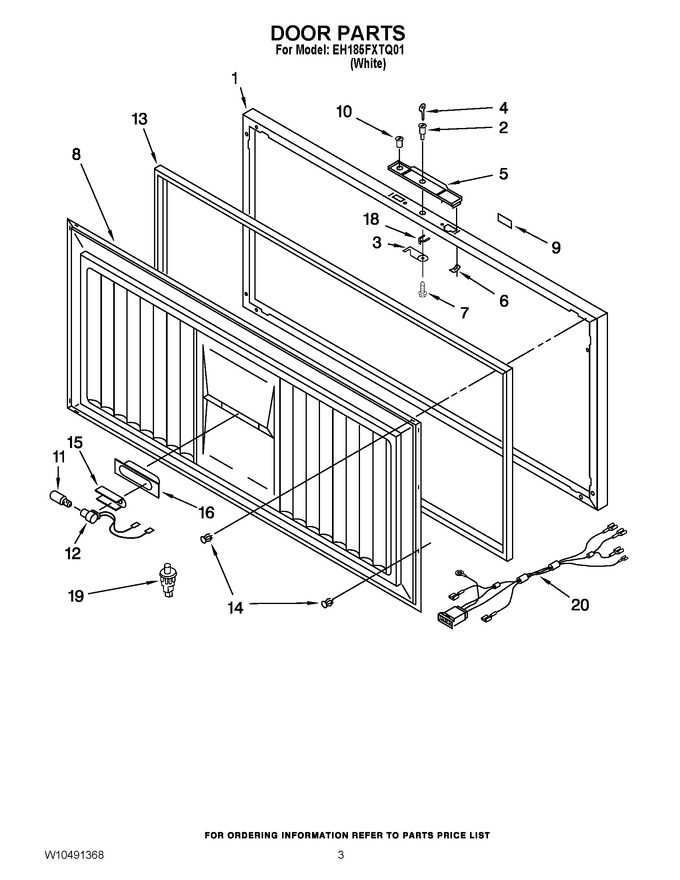

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35652-803		Exterior Door Panel (includes Insulation)				$ 181.69
2	3-35284-001		Lock				$ 24.42
3	2-35195-006		Hook Bolt, Lock				$ 23.46
4	1-26356		Key				$ 5.83
5	4-35663-149		Handle				$ 43.72
6	3-24059-024		Clip, Oblong				$ 12.11
7	W11233072		Screw   (Replaces: 3-24004-100)			Immediately	$ 12.62
8	4-37095-002		Interior Door Panel		Appelez-nous	-
9	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 79.87
10	3-75560-003		Light, Indicator				$ 105.09
11	W10873798		Bulb, Light   (Replaces: 1-24397-001)			Immediately	$ 12.53
12	3-35862-001		Socket, Light		Appelez-nous	-
13	WP4-35260-011		Gasket   (Replaces: 4-35260-011)				$ 301.19
14	2-25702-006		Gasket, Clip				$ 13.20
15	2-30045-001		Shield, Heat				$ 11.39
16	3-25693-001		Reflector, Light				$ 15.36
18	1-26359		Clip, Spring				$ 71.75
19	W10917237		Switch, Light   (Replaces: 3-35645-001)				$ 39.14
20	W10620417		Harness, Wiring (lid)   (Replaces: 4-35641-002)				$ 120.34
