SELECT A DIAGRAM

01 - Cover


03 - Main Top


05 - Burners


06 - Wiring Diagram

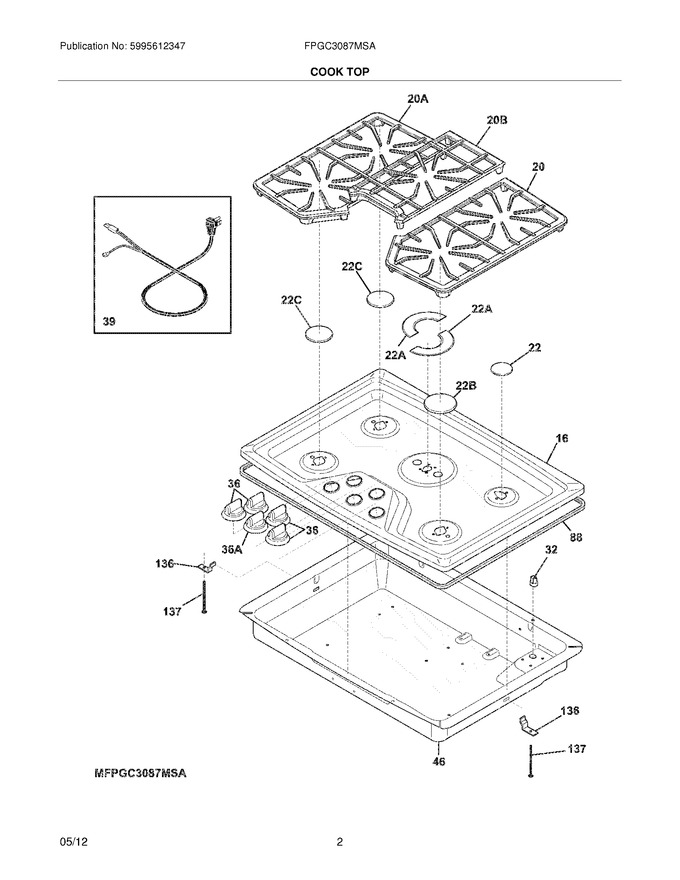

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379027		Maintop,stainless ,w/graphics		Appelez-nous	-
20	318391606		Grate,top Burner ,black ,rh		Appelez-nous	-
22	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
36	318948100		Knob,top Valve ,stainless ,(4)		Appelez-nous	-
39	318144006		Cord,service		Appelez-nous	-
46	318278910		Box,burner		Appelez-nous	-
88	318280120		Gasket,cooktop ,93``				$ 138.29
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318391706		Grate,top Burner ,black ,lh		Appelez-nous	-
20B	318391806		Grate,top Burner ,black ,center		Appelez-nous	-
22A	316262204		Cap,17k Twin Burner ,black ,(2)			Immediately	$ 72.80
22B	316261904		Cap,12k Burner ,black				$ 46.36
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
36A	318948101		Knob,top Valve ,stainless ,18k		Appelez-nous	-
NI	5303323171		Tape,aluminum ,2``		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
