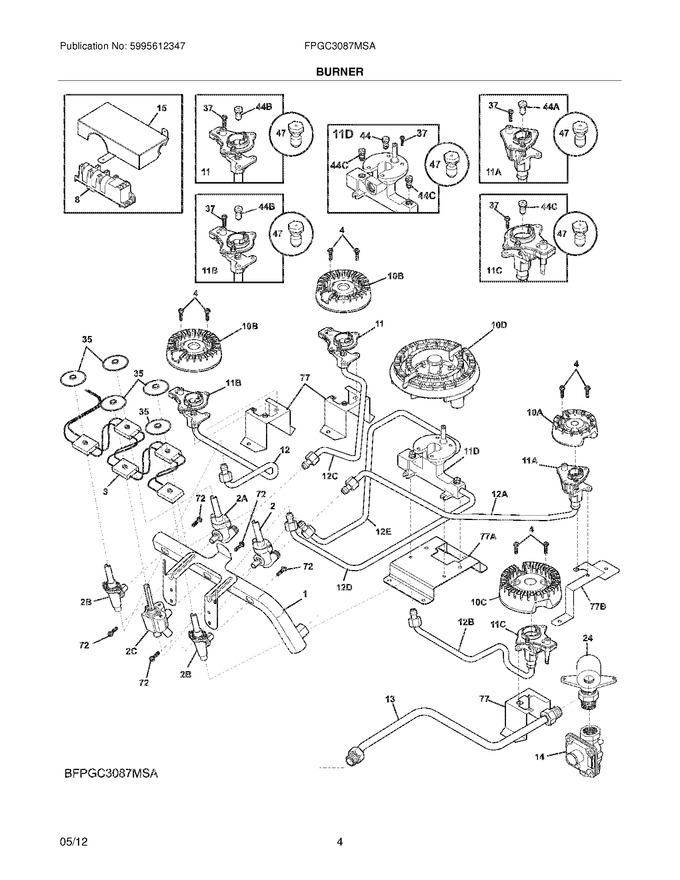

05 - Burners


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
13	318054517		Tube,connection ,manifold				$ 118.55
15	318024211		Deflector,spark Module		Appelez-nous	-
24	318054010		Elbow,fitting				$ 172.23
35	318146301		Bushing				$ 34.34
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318920309		Bracket,burner Mtg ,(3)		Appelez-nous	-
77A	318384106		Bracket,burner ,dual		Appelez-nous	-
77B	318920304		Bracket,burner Mtg		Appelez-nous	-
F1	318569803		Manifold,pipe		Appelez-nous	-
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10B	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10C	316438000		Burner,sealed ,12k				$ 67.81
F10D	318567000		Burner Assembly,twin				$ 135.45
F11	316540704		Ignitor/orifice Assy.,top Burner ,7.5k ,w/holder				$ 77.60
F11A	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11B	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11C	316540702		Ignitor/orifice Assy.,top Burner ,12k ,w/holder			Immediately	$ 12.85
F11D	316440102		Ignitor/orifice Assy.,top Burner ,twin ,18k,w/holder				$ 191.46
F12	318560725		Tube,burner ,lf				$ 41.32
F12A	318560724		Tube,burner ,rr				$ 37.38
F12B	318560723		Tube,burner ,rf				$ 39.69
F12C	318560726		Tube,burner ,lr ,(2)				$ 37.38
F12D	318560735		Tube,center Burner ,simmer				$ 39.53
F12E	318560734		Tube,center Burner ,main				$ 39.53
F14	318122717		Regulator,pressure		Appelez-nous	-
F2	318387400		Valve,burner ,5k				$ 174.43
F2A	318387401		Valve,top Burner ,9.5k				$ 166.56
F2B	316520704		Valve,burner ,17k				$ 142.54
F2C	316574900		Valve,top Burner ,18k Dual				$ 242.16
F3	318232660		Wiring Harness,w/igntr Switch				$ 162.28
F44	316527514		Orifice,top Burner ,simmer				$ 20.56
F44A	316527504		Orifice,burner ,5k				$ 22.68
F44B	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44C	316527502		Orifice,top Burner ,12k				$ 22.68
F47	318565428		Conversion Kit,lp		Appelez-nous	-
F8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
FNI	318199789		Wiring Harness,ignitor				$ 107.26
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	318570101		Bracket,module		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316566901		Sleeve,insulator				$ 12.89
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
