SELECT A DIAGRAM

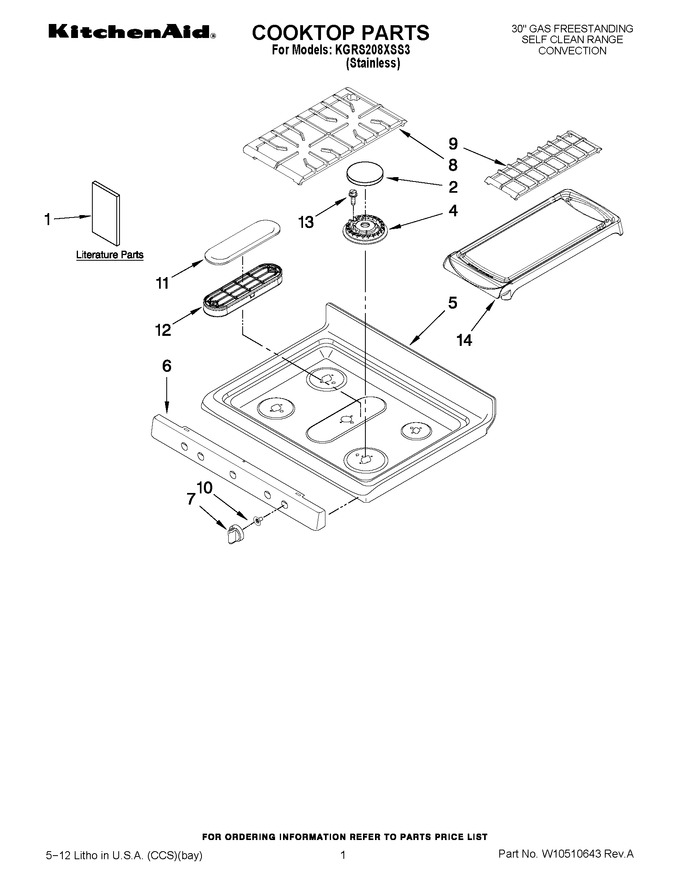

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344643		Installation Instructions		Appelez-nous	-
1	W10328280		Owners Manual		Appelez-nous	-
1	W10346743		Tech Sheet		Appelez-nous	-
2	W10347754		Cap, Burner (5k(rr)				$ 26.32
2	WPW10347764		Cap, Burner (9.5k(lf & Center)   (Replaces: W10347764)				$ 116.87
2	WPW10347750		Cap, Burner (17k (rf)   (Replaces: W10347750)				$ 90.09
2	WPW10347755		Cap, Burner (12k(lr))   (Replaces: W10347755)				$ 141.13
4	W10345845		Burner (16/17k (rf)				$ 94.95
4	W10345846		Burner (5k (rr)				$ 59.98
4	WPW10345847		Burner (12k (lr))   (Replaces: W10345847)				$ 83.66
4	W10345848		Burner (9.5k(lf & Center)				$ 76.23
5	W10356125		Cooktop		Appelez-nous	-
6	W10507562		Panel, Manifold		Appelez-nous	-
7	W10351695		Knob, Control (1)				$ 19.11
7	W10351694		Knob, Control (4)				$ 20.23
8	W10347694		Grate, Burner Black, Side				$ 133.02
9	W10347695		Grate, Burner Black, Center				$ 133.02
10	W10351722		Shield, Heat-knob		Appelez-nous	-
11	W10356126		Cap, Burner Black-oval				$ 48.46
12	W10355925		Burner, Oval				$ 118.50
13	W10345998		Screw, Burner Head		Appelez-nous	-
14	W10356128		Griddle				$ 294.03

    View Diagram in Separate Window       Print Part List
