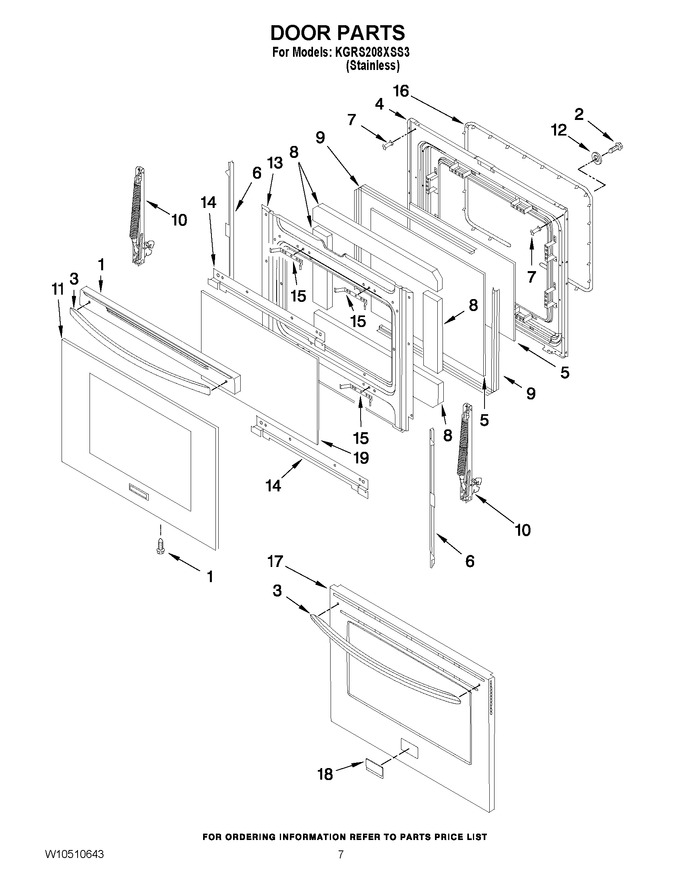

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10370043		Screw, Door Panel		Appelez-nous	-
2	W10370041		Screw, Door		Appelez-nous	-
3	W10350605		Handle, Door				$ 125.83
4	W10347855		Liner, Door		Appelez-nous	-
5	W10347853		Glass, Inner				$ 91.43
6	W10352006		Bracket, Glass		Appelez-nous	-
7	W10414709		Spacer, Door Handle		Appelez-nous	-
8	W10347852		Insulation, Door		Appelez-nous	-
9	W10348012		Frame, Door Glass		Appelez-nous	-
10	W10352004		Hinge, Door		Appelez-nous	-
11	W10507565		Glass, Outer Door		Appelez-nous	-
12	W10370042		Washer, Door		Appelez-nous	-
13	W10347850		Retainer, Shield-wool		Appelez-nous	-
14	W10348015		Bracket, Airwash Glass		Appelez-nous	-
15	W10350617		Bracket, Glass Spacer-door		Appelez-nous	-
16	W10348010		Seal, Door				$ 58.74
17	W10357317		Door Panel		Appelez-nous	-
18	W10852683		Nameplate   (Replaces: W10113961)				$ 104.26
19	W10348011		Glass, Door Inner		Appelez-nous	-
