View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

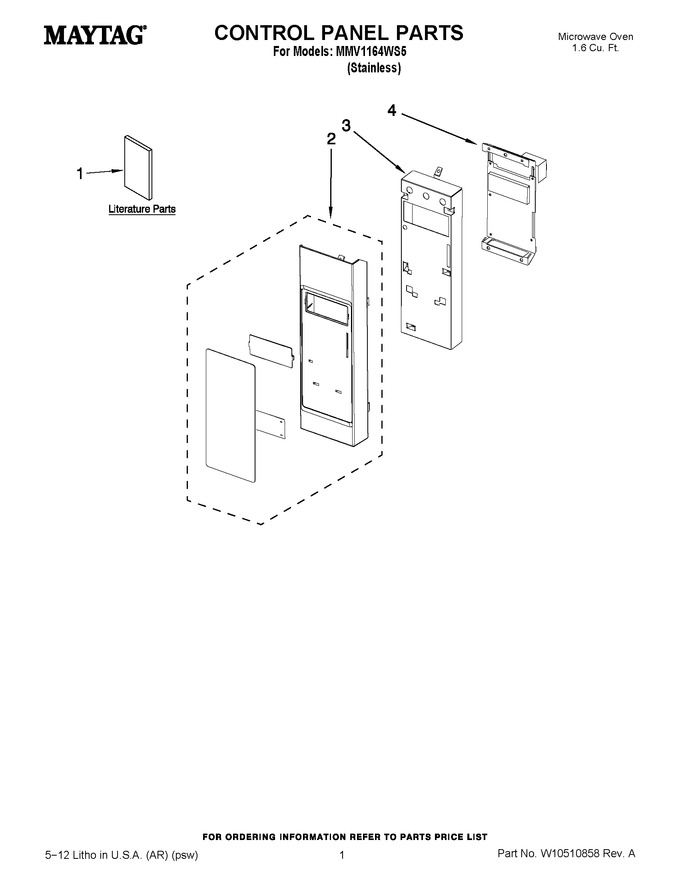

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10249248 | U & C Guide |
|
- | |||||
| 1 | W10443801 | Tech Sheet |
|
- | |||||
| 1 | W10197630 | Cook Guide Label |
|
- | |||||
| 1 | W10344702 | Install,instruct. |
|
- | |||||
| 2 | W10340660 | Panel Asy, Control Includes Lens And Membrane Switch (stainless) |
|
$ 307.89 | |||||
| 3 | W10364232 | Bracket, Control |
|
- | |||||
| 4 | W10346133 | Microcomputer |
|
- |
