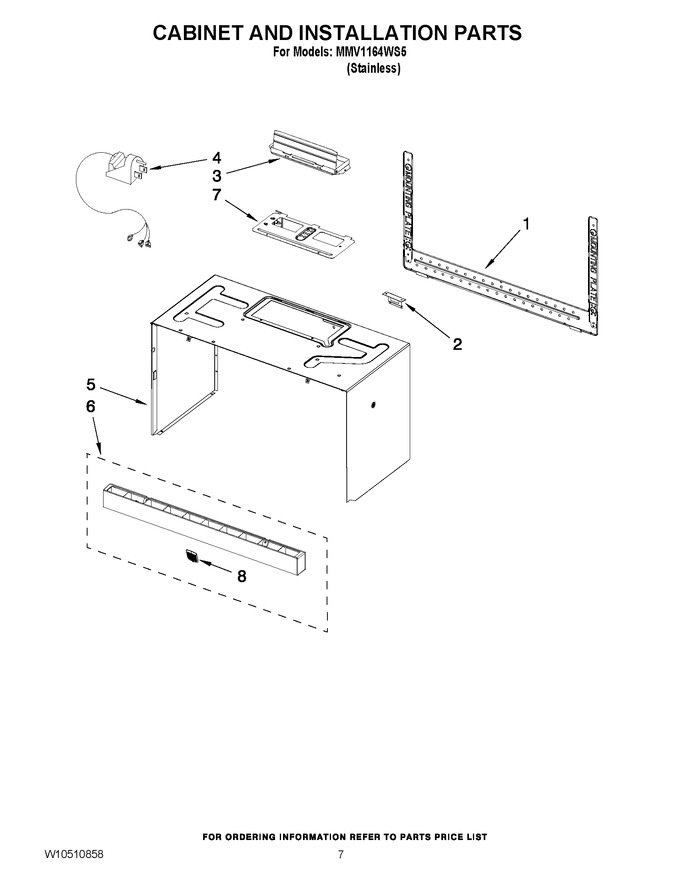

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 255.01 | |||||
| 6 | W10259232 | Grille, Vent (stainless) |
|
Immediately | $ 144.91 | ||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| 8 | W10286845 | Nameplate |
|
$ 35.23 | |||||
| NI | W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10391772 | Main Harness |
|
- | |||||
| NI | W10470168 | Ground Wire Assy (Replaces: W10163439) |
|
$ 36.63 | |||||
| NI | W10539841 | Hdlmp/tt Wire Assy (Replaces: W10269479) |
|
$ 17.98 | |||||
| NI | W10163438 | Ground Wire |
|
- | |||||
| NI | W10346137 | Harness Wire, Ntc |
|
- | |||||
| NI | W10539842 | Harness, Wire Hv Transformer (Replaces: W10163436) |
|
$ 14.31 | |||||
| NI | W10190018 | Template, Upper |
|
Immediately | $ 6.47 |
