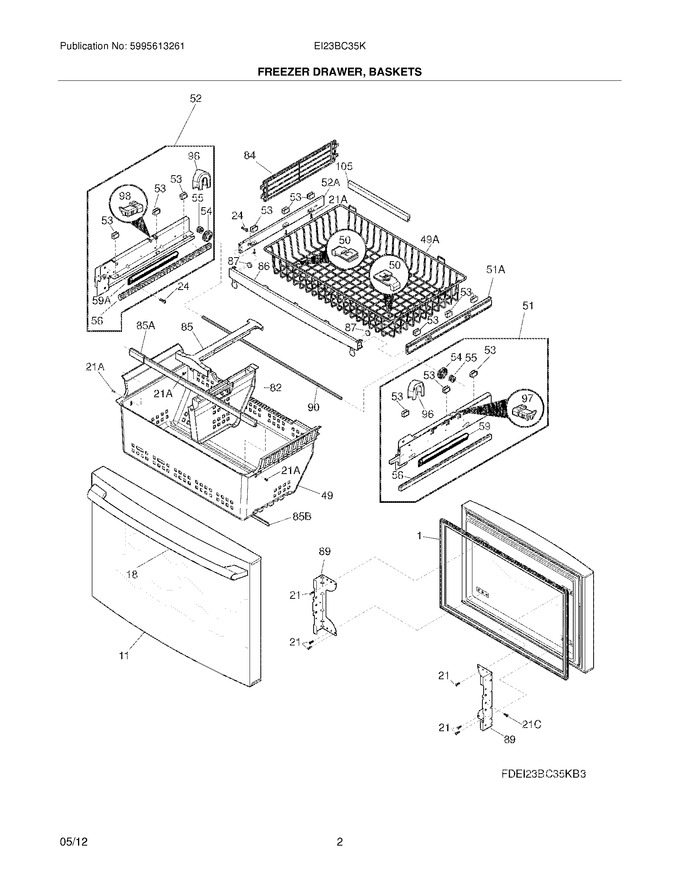

03 - Freezer Drawer - Basket


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


28 - Wiring Diagram


29 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987901		Drawer,white ,freezer				$ 267.67
18	241881324		Handle-frzr Drawer,white		Appelez-nous	-
21	241695904		Screw				$ 14.41
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	5304526200		Basket-frzr,plastic ,lower   (Replaces: 242130801)			Immediately	$ 147.57
50	242219501		Clip-basket,pull Side		Appelez-nous	-
51	241883605		Slide Assembly,basket Lower ,rh ,freezer Drawer				$ 252.89
52	241883705		Slide Assembly,basket Lower ,lh ,freezer Drawer				$ 263.24
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	242163801		Rack,drawer Travel ,lh				$ 14.98
56	242163802		Rack,drawer Travel ,rh				$ 13.99
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242131401		Divider,basket				$ 65.88
84	241780905		Divider,basket				$ 91.43
85	242139401		Divider,basket ,lower				$ 87.21
86	5304507340		Trim,drawer ,stabilizer   (Replaces: 241807605)			Immediately	$ 45.55
87	241812202		Magnet,freezer Drawer				$ 72.30
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770705		Bar,timing   (Replaces: 241770702)				$ 50.66
96	241973501		Cover-pinion   (Replaces: 242156901)				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
49A	241780811		Basket-frzr,upper				$ 212.93
51A	241894208		Slide Assembly,basket ,rh ,freezer Drawer		Appelez-nous	-
52A	241894209		Slide Assembly,basket ,lh ,freezer Drawer		Appelez-nous	-
59A	241979701		Closure,drawer		Appelez-nous	-
85A	242139301		Support-beam,divider ,lower Basket				$ 73.71
85B	241872203		Support-beam,lower Basket				$ 53.85
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F21C	5304497384		Plate,tapping   (Replaces: 242147601)				$ 15.60
F85B	242015001		Screw,8-18 X 1/2			Immediately	$ 16.30
NI	242039701		Screw				$ 13.46
NI	241601002		Wrench,allen		Appelez-nous	-
NI	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
NI	241979601		Bumper,rubber				$ 22.68
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	242139201		Spring-compression,divider ,lower Basket				$ 19.72
NI	242011101		Pin-lock				$ 15.17
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 19.85
