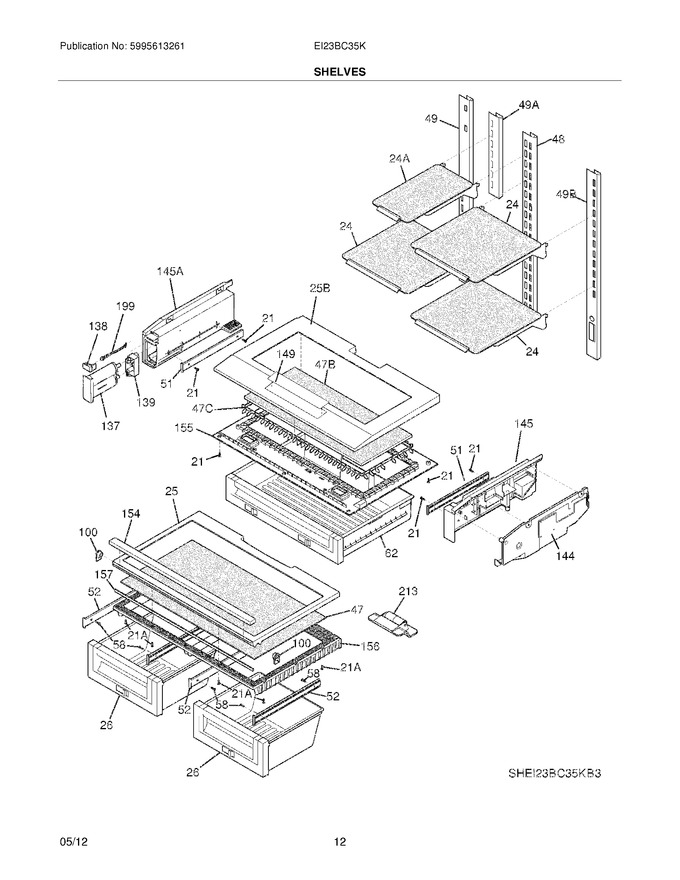

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 24 | 242068712 | Shelf,sliding 1/2 Wid ,cantilever ,``spill-safe`` |
|
$ 189.79 | |||||
| 25 | 241802205 | Frame-crisper Cover,upper |
|
$ 119.07 | |||||
| 26 | 241772808 | Pan-crisper |
|
$ 269.22 | |||||
| 47 | 241768802 | Glass-crisper Frame |
|
$ 77.36 | |||||
| 48 | 242122101 | Channel-shelf Mtg,center |
|
$ 80.09 | |||||
| 49 | 242122203 | Channel-shelf Mtg,side ,lh |
|
- | |||||
| 51 | 241816101 | Slide-deli |
|
$ 152.38 | |||||
| 52 | 241769002 | Slide-crisper Cover |
|
$ 119.78 | |||||
| 58 | 241941202 | Screw,8-18 X 3/8 |
|
$ 15.17 | |||||
| 62 | 241827206 | Pan-deli |
|
$ 248.49 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 138 | 241885901 | Button-filter Release |
|
$ 28.35 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 144 | 241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 241803803 | Housing-deli Air Control |
|
$ 126.21 | |||||
| 149 | 241974501 | Insert-pan Cover,plastic |
|
$ 57.79 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 39.44 | |||||
| 155 | 241803403 | Frame-deli Cover,lower |
|
$ 148.13 | |||||
| 156 | 241872006 | Frame-crisper Cover,lower |
|
$ 119.78 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 213 | 242010901 | Roller Assy,deli Pan |
|
$ 49.62 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 24A | 242068713 | Shelf-``spill-safe``,cantilever ,1/4 Width,sliding |
|
- | |||||
| 25B | 241803303 | Frame-deli Cover,upper |
|
$ 223.72 | |||||
| 47B | 242176601 | Glass-deli Drawer,11.4 X 26.5 |
|
- | |||||
| 47C | 242186001 | Spacer,non-ptd |
|
$ 37.38 | |||||
| 49A | 5304531311 | Channel-shelf Mtg,center ,icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122302 | Channel-shelf Mtg,side ,rh |
|
$ 73.00 | |||||
| F137 | 242175101 | Filter-water,water ,carbon Cassette ,front,with O`rings |
|
- | |||||
| F137 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| F139 | 241858401 | Screw,no.6 X 1/2 Hilo |
|
$ 13.05 | |||||
| F145 | 242058709 | Support,rail |
|
$ 90.01 | |||||
| F199 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| F47B | 5304469950 | Sealant,rubber Silicone |
|
Immediately | $ 89.95 | ||||
| NI | 242146209 | Energy Guide . |
|
- |
