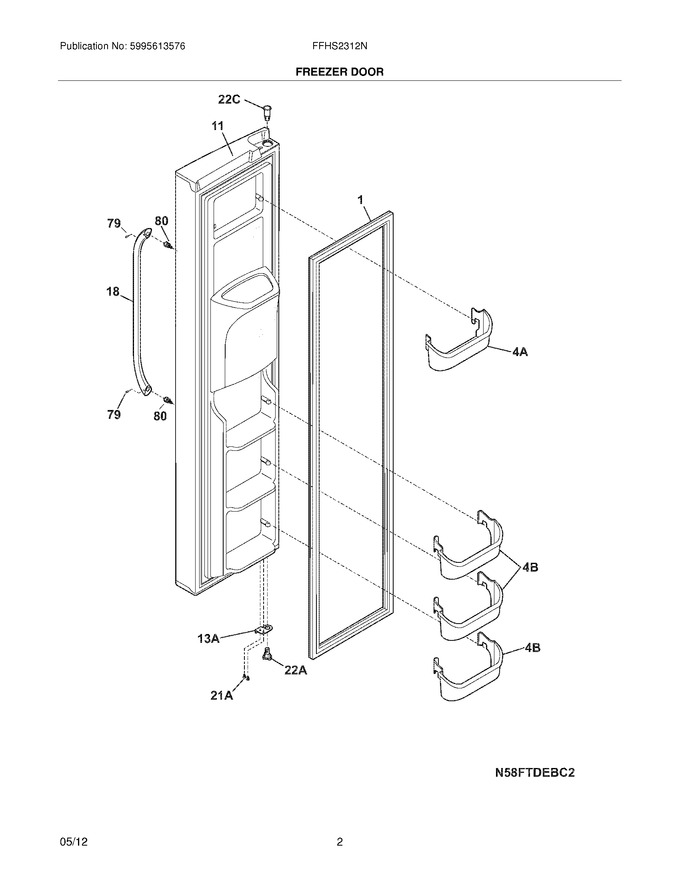

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242026433 | Door-frzr,stainless ,complete Assy |
|
- | |||||
| 18 | 242059301 | Handle-door,stainless |
|
$ 219.03 | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 242000502 | Bearing-hinge,black ,lower |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 4A | 240367301 | Bin-door,frzr-upper |
|
Immediately | $ 44.68 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 68.11 | ||||
| F1 | 241786016 | Gasket-frzr Door,black ,magnetic (Replaces: 241786008) |
|
$ 93.12 | |||||
| FNI | 5304521763 | Harness-wiring,door (Replaces: 240552101) |
|
$ 85.69 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 |
