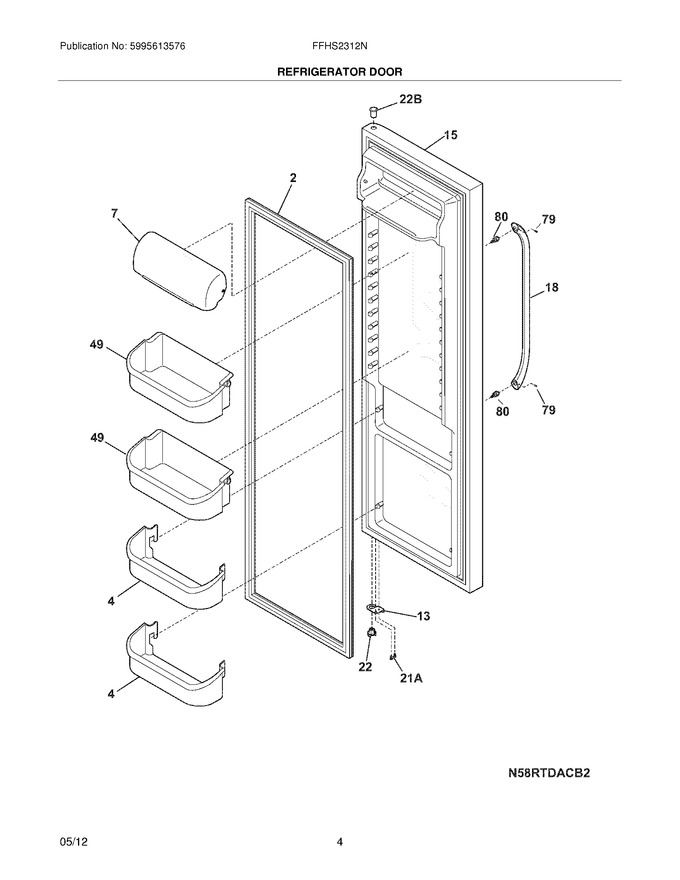

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581905		Door Stop,black ,ref				$ 60.25
15	242038826		Door-refr,stainless ,complete Assy		Appelez-nous	-
18	242059301		Handle-door,stainless				$ 219.03
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
49	240324501		Bin-door,gallon			Immediately	$ 69.06
79	218755405		Screw-set,10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
F2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241786007)			Immediately	$ 94.66
