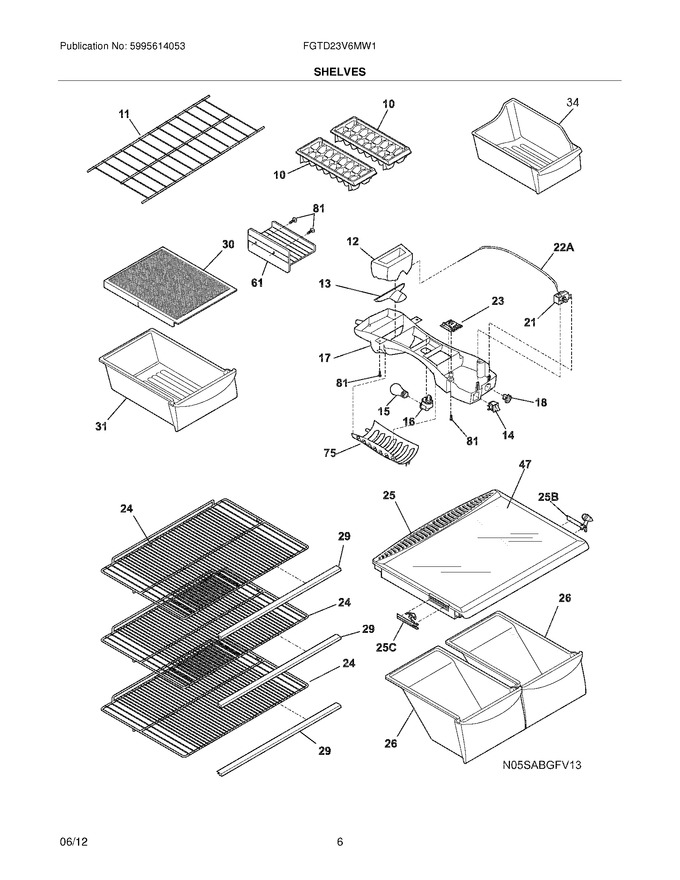

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358006		Shelf,freezer ,full-width ,wire				$ 45.41
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
17	240368105		Box-control,front   (Replaces: 240368103)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240360904		Shelf,sliding ,wire				$ 72.45
25	240364718		Cover-crisper Pan				$ 164.62
26	240343803		Pan-crisper,(2)			Immediately	$ 171.91
29	240430708		Trim-shelf		Appelez-nous	-
30	240361801		Cover,meat Pan Hanger ,drop Through		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
47	240350609		Insert-pan Cover,glass   (Replaces: 240350654)			Immediately	$ 162.30
61	215781501		Shelf,ice Tray Mount ,wire				$ 136.19
75	240412701		Shield,light				$ 16.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F15	218814402		Light Bulb				$ 55.36
F16	241559801		Socket-light/lamp   (Replaces: 240433702)				$ 72.68
F21	5304458021		Control,temperature		Appelez-nous	-
F23	242011004		Control-defrost,adaptive Timer ,220/240 V,pc Board		Appelez-nous	-
FNI	242081702		Wiring Harness,control Box		Appelez-nous	-
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
