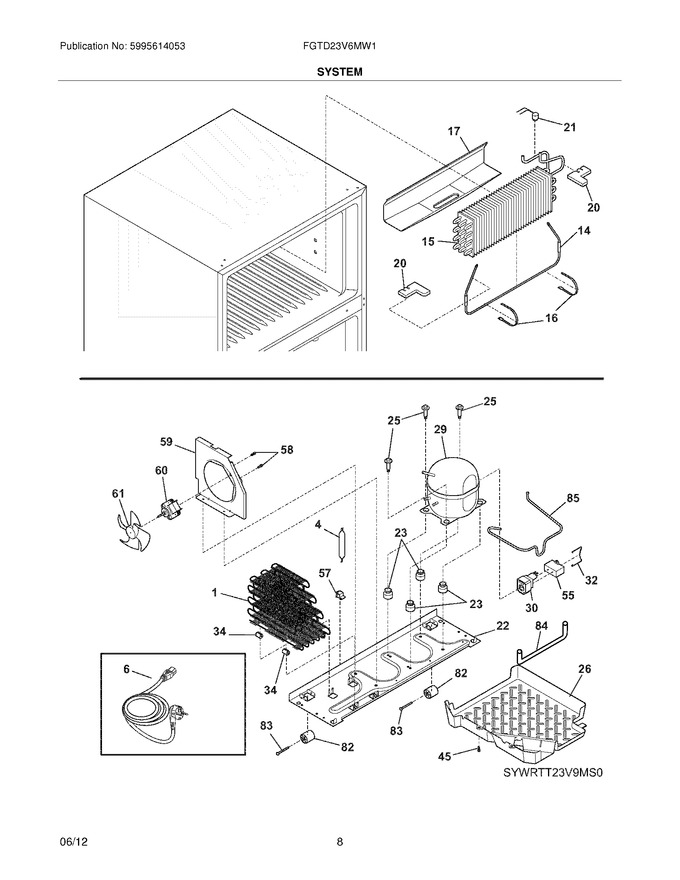

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
20	241551902		Insulation Block				$ 11.34
22	241665504		Base-compressor				$ 80.09
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
26	241697603		Pan-defrost   (Replaces: 241697602)				$ 79.22
32	241809001		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
57	242037701		Clip-compressor Mtg				$ 2.84
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	241935603		Shroud,cond Fan Motor		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
84	240597301		Tube-drain,lower		Appelez-nous	-
85	241856901		Tube-connector,suction				$ 78.11
F1	241785403		Condenser,dynamic		Appelez-nous	-
F14	240356218		Defrost Heater,220 V		Appelez-nous	-
F15	5303918274		Evaporator Kit			Immediately	$ 423.67
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	240550927		Compressor		Appelez-nous	-
F30	241707714		Starter-ptc				$ 59.54
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F55	218909908		Capacitor,run				$ 177.19
F6	241723306		Cord-service		Appelez-nous	-
F60	242018402		Motor-condenser Fan,220-240v .		Appelez-nous	-
F61	240524102		Fan Blade,condenser Fan			Immediately	$ 39.43
FNI	242020001		Harness,wiring,machine Compt .		Appelez-nous	-
FNI	5303918330		Heat Exchanger Kit,suction Line ,service				$ 335.10
FNI	241735901		Bracket Assembly,receptacle ,service Cord		Appelez-nous	-
FNI	241832601		Harness-wiring,freezer		Appelez-nous	-
NI	5303918239		Hot Tube Repair Kit,220 V ,service		Appelez-nous	-
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
