SELECT A DIAGRAM

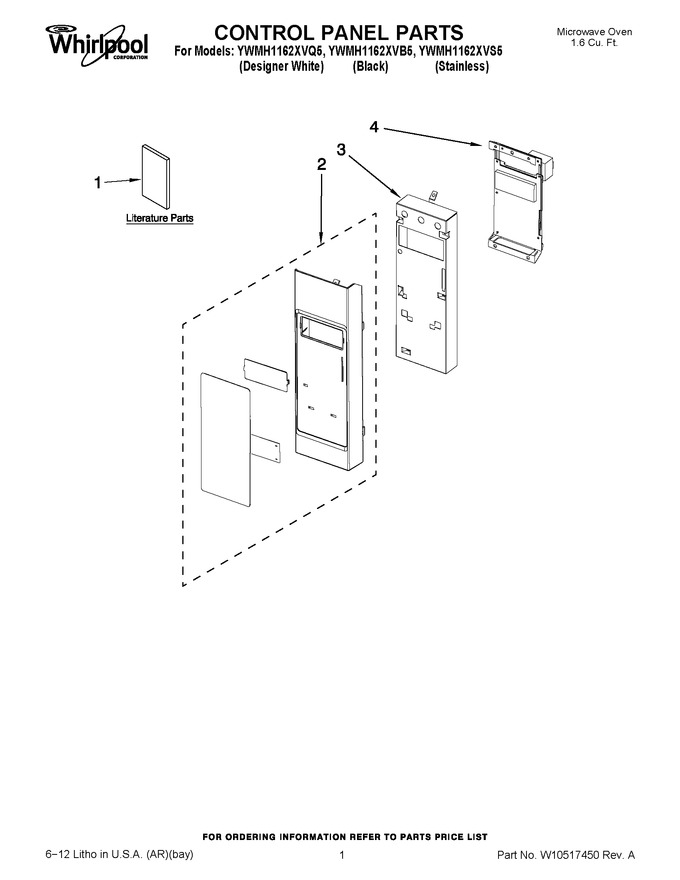

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10219922		U & C Guide		Appelez-nous	-
1	W10405618		Tech Sheet, Slim (eng. & French)		Appelez-nous	-
1	W10292071		Cook Guide Label		Appelez-nous	-
1	W10292056		Cook Guide Lbl, Fr		Appelez-nous	-
1	W10344701		Install, Instruct.		Appelez-nous	-
2	W10211459		Panel Asy, Control Includes Lens And Membrane Switch (black)				$ 352.24
2	W10211460		Panel Asy, Control Includes Lens And Membrane Switch (white)				$ 282.53
2	W10210864		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 299.55
3	W10346134		Bracket, Control				$ 82.59
4	W10398091		Microcomputer				$ 144.49

    View Diagram in Separate Window       Print Part List
