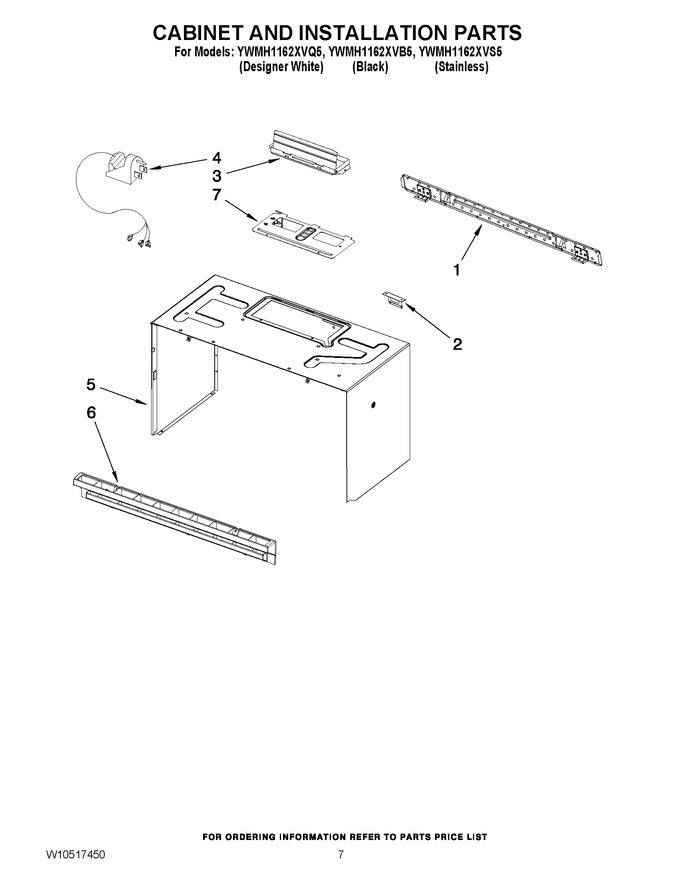

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10313271) |
|
$ 18.48 | |||||
| 5 | WPW10462001 | Case, Outer (blk,ss Models) (Replaces: W10462001) |
|
$ 255.01 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 250.22 | |||||
| 6 | W10259625 | Grille, Vent (blk,ss Models) |
|
Immediately | $ 67.30 | ||||
| 6 | W10269471 | Grille, Vent (white) (Replaces: 8206390) |
|
Immediately | $ 98.77 | ||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| NI | W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | W10190020 | Template, Upper |
|
$ 56.21 | |||||
| NI | W10138802 | Screw, Top Mountng |
|
$ 9.80 | |||||
| NI | W10399320 | Main Harness |
|
$ 101.91 | |||||
| NI | W10539840 | Ground Wire Assy (Replaces: 8205696) |
|
$ 21.50 | |||||
| NI | W10399322 | H.v. Wire Assy |
|
$ 132.62 | |||||
| NI | W10346136 | Grnd Wire, Filter |
|
- | |||||
| NI | W10539841 | Hdlmp/tt Wire Assy (Replaces: W10269479) |
|
$ 17.98 | |||||
| NI | W10539842 | Hv Trnsfmr Wr Assy (Replaces: W10163436) |
|
$ 14.31 |
