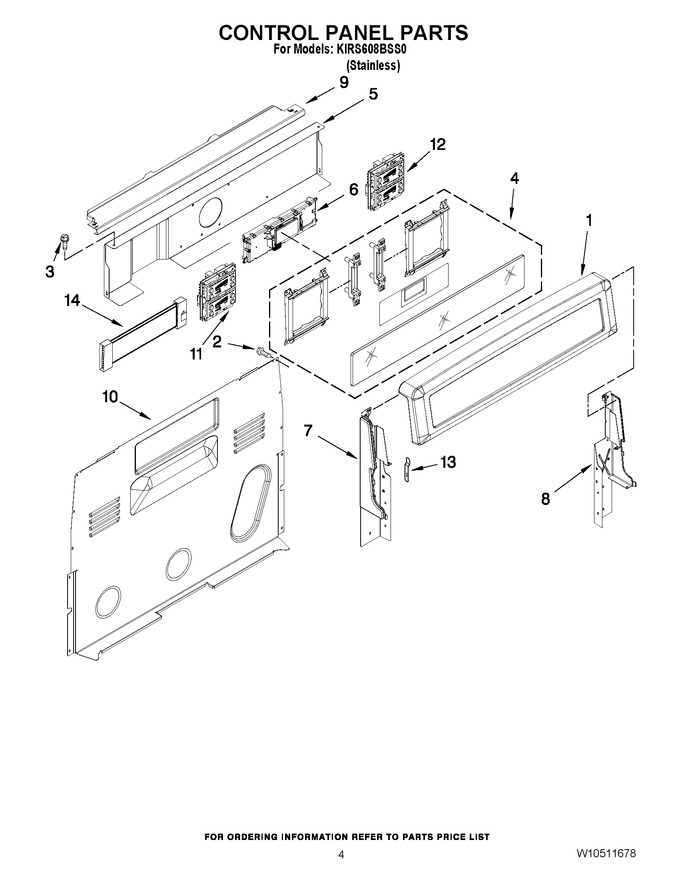

01 - Cooktop Parts
02 - Interior Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347960 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 4 | WPW10726780 | Active Overlay (Replaces: W10324413) |
|
$ 731.60 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 6 | WPW10686474 | Control, Mrc2 (Replaces: W10340698) |
|
$ 406.97 | |||||
| 7 | W11404310 | End Cap, Lh (black) (Replaces: W10409002) |
|
$ 66.00 | |||||
| 8 | W10409003 | End Cap, Rh (black) |
|
$ 72.08 | |||||
| 9 | W10525121 | Bracket, Console Mounting (Replaces: W10182322) |
|
$ 84.73 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | WPW10341840 | Control, Ego Left (Replaces: W10341840) |
|
$ 494.48 | |||||
| 12 | WPW10553763 | Control, Ego Right (Replaces: W10341839) |
|
$ 754.06 | |||||
| 13 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 14 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 102.81 |
