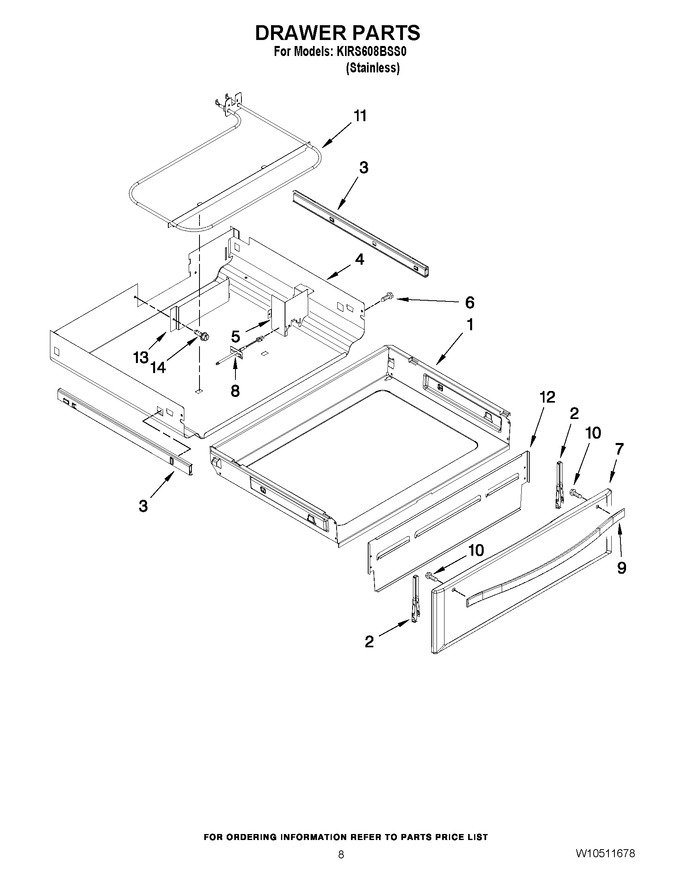

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10813962 | Drawer (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 2 | WPW10318027 | Bracket, Mounting (Replaces: W10318027) |
|
$ 103.00 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 3 | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 92.68 | ||||
| 4 | W10634260 | Enclosure, Drawer (Replaces: W10106394) |
|
Immediately | $ 179.16 | ||||
| 5 | W10634259 | Cover, Wire (Replaces: W10323358) |
|
$ 75.29 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11334144 | Panel, Drawer Frnt (Replaces: W10330059) |
|
$ 178.80 | |||||
| 8 | WPW10131827 | Sensor, Rtd Wako (Replaces: W10131827) |
|
$ 236.21 | |||||
| 9 | WPW10289076 | Handle, Drawer (Replaces: W10289076) |
|
$ 286.81 | |||||
| 10 | WP3400882 | Screw, Handle (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 11 | WPW10323181 | Element, Warming (Replaces: W10323181) |
|
$ 113.21 | |||||
| 12 | W10324878 | Panel, Inner |
|
- | |||||
| 13 | W10325438 | Cover, Panel |
|
$ 134.56 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 |
