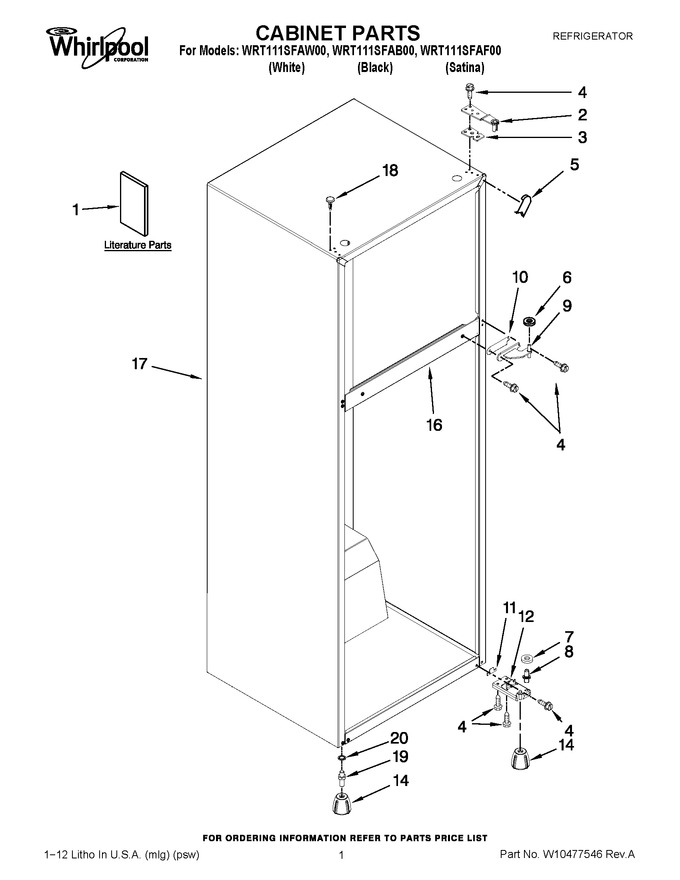

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Manual, Ref./ Fzr. |
|
$ 30.30 | |||||
| 1 | W10462276 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10451689 | Use & Care Guide |
|
- | |||||
| 1 | W10451692 | Energy Guide |
|
- | |||||
| 2 | W10346928 | Hinge Assy, Top |
|
$ 37.19 | |||||
| 3 | W10399311 | Shim, Hinge Top |
|
$ 13.91 | |||||
| 4 | WP489497 | Screw 12-24 X .700 (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | W10439615 | Corner Filler (apollo Grey) |
|
- | |||||
| 5 | W10429302 | Corner Filler (white) |
|
$ 10.04 | |||||
| 5 | W10447119 | Corner Filler (black) |
|
$ 12.30 | |||||
| 6 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 7 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 8 | WP2325483 | Hinge-pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 9 | W10444670 | Hinge Assy, Center |
|
- | |||||
| 10 | W11269182 | Shim, Hinge Center (Replaces: W10399330) |
|
$ 14.48 | |||||
| 11 | W10399313 | Shim, Hinge Bottom |
|
- | |||||
| 12 | W10837711 | Hinge Assy, Bottom (Replaces: W10347340) |
|
$ 34.43 | |||||
| 14 | WPW10340017 | Leg, Leveler (Replaces: W10340017) |
|
Immediately | $ 14.69 | ||||
| 16 | N/P | Rail Center (not Serviced) |
|
- | |||||
| 17 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 18 | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 16.29 | |||||
| 18 | WPW10520307 | Hole Plug (apollo Grey) (Replaces: 2254506) |
|
Immediately | $ 6.47 | ||||
| 18 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 19 | WPR-30039 | Screw, Leveler (Replaces: R-30039) |
|
Immediately | $ 6.96 | ||||
| 20 | WPR-30268 | Washer, Metallic (Replaces: R-30268) |
|
$ 9.90 |
