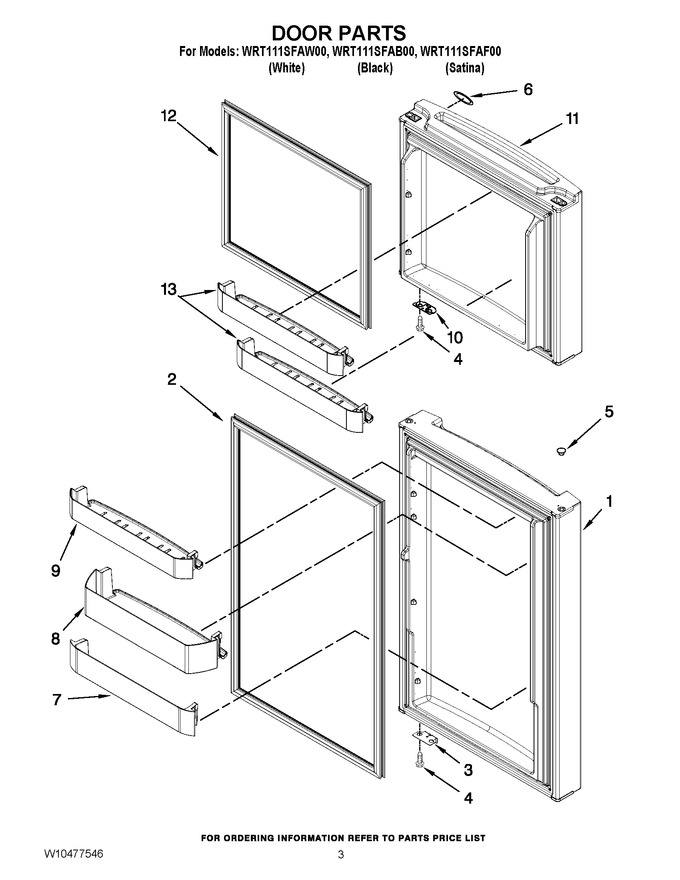

WRT111SFAW00 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10463571	Refrigerator Door (includes Items 2, 3, 5 & Molded Handle) (satina)	Appelez-nous	-
1	W10370909	Refrigerator Door (includes Items 2, 3, 5 & Molded Handle) (white)	Appelez-nous	-
1	W10463570	Refrigerator Door (includes Items 2, 3, 5 & Molded Handle) (black)	Appelez-nous	-
2	W11625052	Gasket, Door (rc) (black) (Replaces: W10408163)			$ 197.28
2	W11625055	Gasket, Door (rc) (apollo Grey) (Replaces: W10466894)			$ 199.04
2	W11228130	Gasket, Door (rc) (white) (Replaces: W10339009)			$ 249.02
3	W10492012	Bracket, Door Stop (Replaces: W10330387)			$ 14.45
4	WP488921	Screw 8-15 X 1/2 (Replaces: 488921)		Immediately	$ 6.98
5	WP2254517	Hole Plug (apollo Grey) (Replaces: 2254517)		Immediately	$ 20.86
5	WP2212651	Hole Plug (black) (Replaces: 2212651)			$ 20.75
5	WP2212648	Hole Plug (white) (Replaces: 2212648)			$ 7.02
6	WPW10393264	Nameplate (grey) (Replaces: W10393264)			$ 58.06
6	W11178521	Nameplate (white) (Replaces: W10387117)		Immediately	$ 56.82
7	W11199415	Trim, Door Shelf (bottom) (Replaces: W10364009)			$ 84.58
8	W10465186	Door Bin, Gallon	Appelez-nous	-
9	WPW10364007	Door Bin, Shallow (Replaces: W10364007)			$ 65.94
10	W11745278	Bracket, Door Stop (Replaces: 2189202)		Immediately	$ 12.03
11	W10463569	Freezer Door (includes Items 10, 12 & Molded Handle) (satina)	Appelez-nous	-
11	W10370907	Freezer Door (includes Items 10, 12 & Molded Handle) (white)	Appelez-nous	-
11	W10463568	Freezer Door (includes Items 10, 12 & Molded Handle) (black)	Appelez-nous	-
12	W11625037	Gasket, Door (fc) (black) (Replaces: W10408162)	Appelez-nous	-
12	W11625051	Gasket, Door (fc) (apollo Grey) (Replaces: W10466893)			$ 196.16
12	W11625036	Gasket, Door (fc) (white) (Replaces: W10334116)			$ 202.93
13	WPW10370890	Bin, Door (fc) (Replaces: W10370890)			$ 65.04
