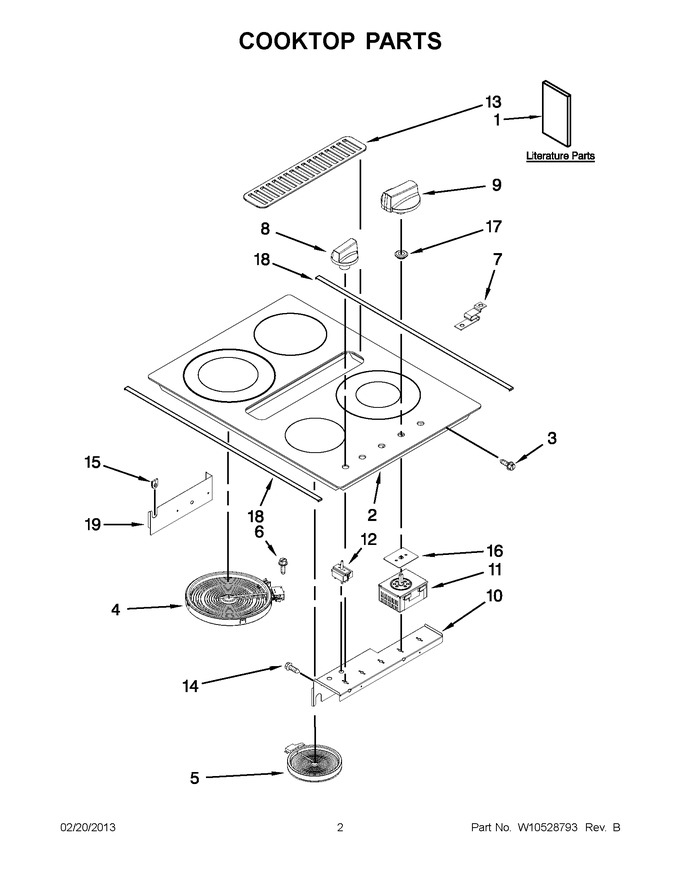

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assy
04 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10197056 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | W10470330 | Tech Sheet |
|
- | |||||
| 1 | W10436037 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10163205 | Top, Main (frost White) |
|
$ 804.50 | |||||
| 2 | W10163206 | Top, Main (black) |
|
$ 852.81 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10178022 | Element, Surface (element, Dual (3000w) (left Front)) (Replaces: W10178022) |
|
Immediately | $ 288.06 | ||||
| 4 | WPW10221529 | Element, Surface (element, Dual (2200w) (right Rear)) (Replaces: W10221529) |
|
$ 304.68 | |||||
| 5 | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 5 | W11171119 | Element (1200w) (right Front) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 7 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 8 | W10209701 | Switch, Fan (white) |
|
$ 58.70 | |||||
| 8 | W10207833 | Switch, Fan (stainless) |
|
$ 17.17 | |||||
| 8 | W10209700 | Switch, Fan (black) |
|
$ 70.25 | |||||
| 9 | W10236132 | Knob, Control (white) |
|
- | |||||
| 9 | W10236133 | Knob, Control (black) |
|
Immediately | $ 17.17 | ||||
| 9 | WPW10236130 | Knob, Control (stainless) (Replaces: W10236130) |
|
$ 19.46 | |||||
| 10 | W10294445 | Plate, Switch |
|
- | |||||
| 11 | WPW10222828 | Switch, Control (single) (right Front & Left Rear) (Replaces: W10222828) |
|
Immediately | $ 260.46 | ||||
| 11 | WPW10234425 | Switch, Control (dual (3000w) (left Front)) (Replaces: W10234425) |
|
Immediately | $ 204.80 | ||||
| 11 | WPW10215034 | Switch, Control (dual (2200w) (right Rear)) (Replaces: W10215034) |
|
Immediately | $ 224.55 | ||||
| 12 | WP4456836 | Switch, Blower (Replaces: 4456836) |
|
Immediately | $ 158.17 | ||||
| 13 | W10205095 | Grille, Air (white) |
|
$ 214.77 | |||||
| 13 | WPW10205094 | Grille, Air (black) (Replaces: W10205094) |
|
$ 216.02 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 15 | 8008P068-60 | Grommet, Wire |
|
$ 14.39 | |||||
| 16 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 17 | WPW10293874 | Grommet, Switch (Replaces: W10293874) |
|
Immediately | $ 7.25 | ||||
| 18 | W10168883 | Trim, Rear (stainless) |
|
$ 56.79 | |||||
| 19 | W10223167 | Bracket, Switch Plate Shield |
|
- |
