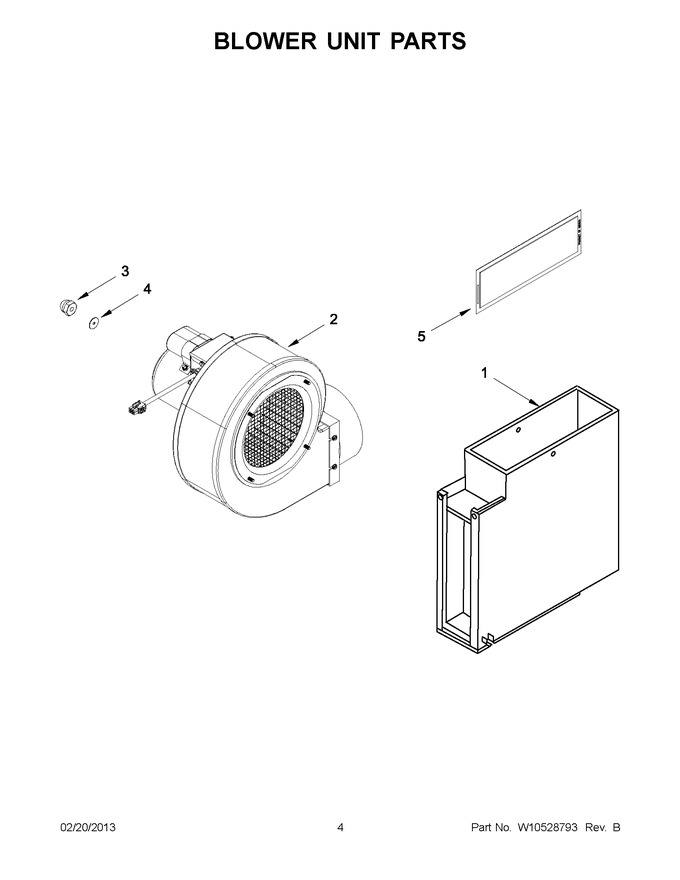

02 - Blower Unit Parts
03 - Burner Box Assy
04 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Assembly,plenum (not Serviced) |
|
- | |||||
| 2 | W11083804 | Assembly, Blower (Replaces: W10338537) |
|
Immediately | $ 572.27 | ||||
| 3 | WPY707702 | Nut, Lock (Replaces: 7103P162-60) |
|
Immediately | $ 6.26 | ||||
| 4 | 7109P086-60 | Washer |
|
- | |||||
| 5 | WPW10240990 | Filter, Grease (Replaces: W10240990) |
|
Immediately | $ 34.52 |
