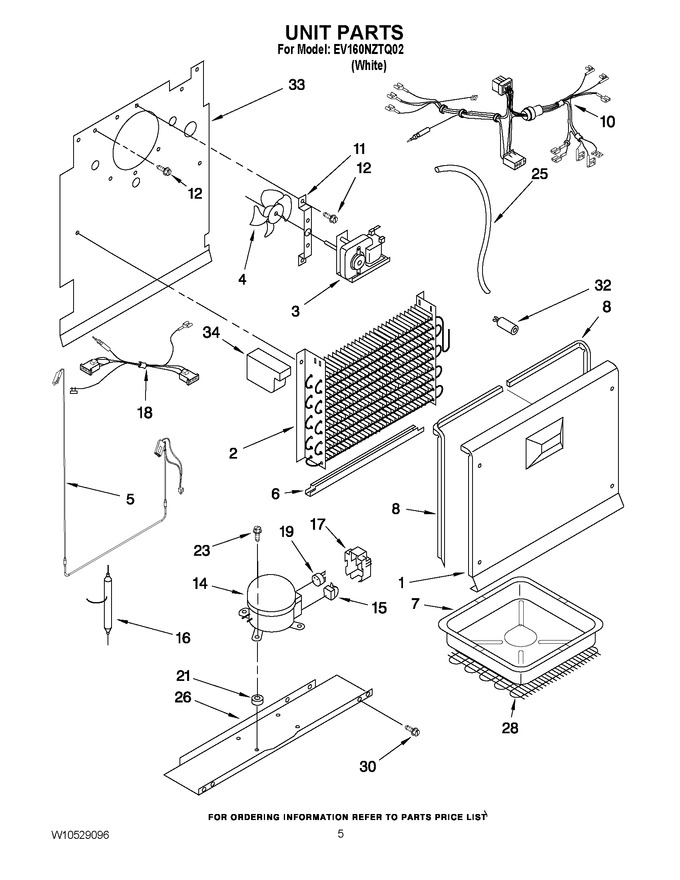

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Motor, Fan   (Replaces: W10236142)			Immediately	$ 127.80
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	WPW10486820		Assembly, Heater Harness Includes Bimetal & Defrost Heater   (Replaces: W10486820)				$ 202.30
6	W10508692		Shield, Heater		Appelez-nous	-
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	3-60180-002		Gasket, Cover Evaporator				$ 24.93
10	4-82408-001		Harness, Ff, Lt		Appelez-nous	-
11	13058002		Bracket, Motor				$ 12.66
12	60001022		Screw, Motor   (Replaces: 3-80732-004)				$ 56.93
14	W10309990		Compressor   (Replaces: 4-32972-142)			Immediately	$ 569.53
15	WPW10466655		Relay   (Replaces: W10466655)				$ 115.81
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
17	WP61002138		Cover   (Replaces: W10462677)				$ 7.89
18	W10507269		Harness, Fan				$ 102.38
19	WP2187145		Overload   (Replaces: 2-34286-038)				$ 131.93
21	WP2163786		Compressor, Grommet   (Replaces: 13146462)				$ 7.16
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
25	WPW10474988		Exchanger, Heat   (Replaces: W10474988)				$ 111.53
26	W10470130		Pan, Compressor		Appelez-nous	-
28	W10451951		Condenser   (Replaces: 4-82234-002)				$ 257.77
30	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
32	1-80275-101		Grommet		Appelez-nous	-
33	W10452115		Plate, Evaporator Mount				$ 225.55
34	W10452121		Block, Foam		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-
