SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

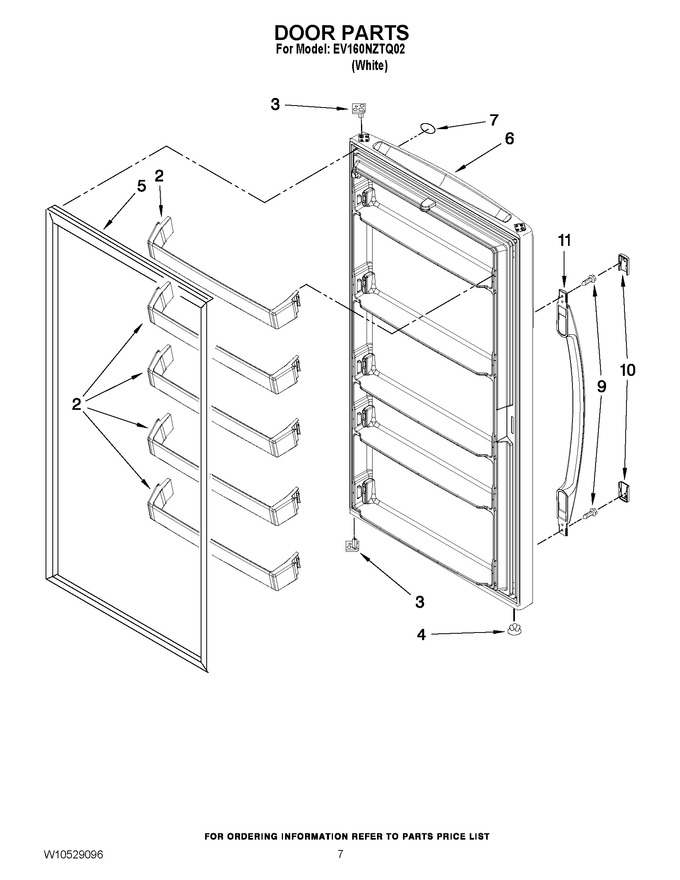

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP4-65450-001		Rail, Door   (Replaces: 4-65450-001)				$ 73.45
3	2-81124-001		Stop, Door				$ 31.15
4	3-24898-007		Vent Plug				$ 9.72
5	WP4-65151-001		Gasket, Door   (Replaces: 4-65151-001)				$ 303.88
6	4-82827-012		Door Assembly (includes Interior Door Panel)		Appelez-nous	-
7	W11178521		Nameplate   (Replaces: W10481434)			Immediately	$ 56.82
9	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 10.94
10	2-82012-001		Trim, Handle				$ 10.34
11	3-82013-003		Handle (includes Item 10)				$ 69.49

    View Diagram in Separate Window       Print Part List
