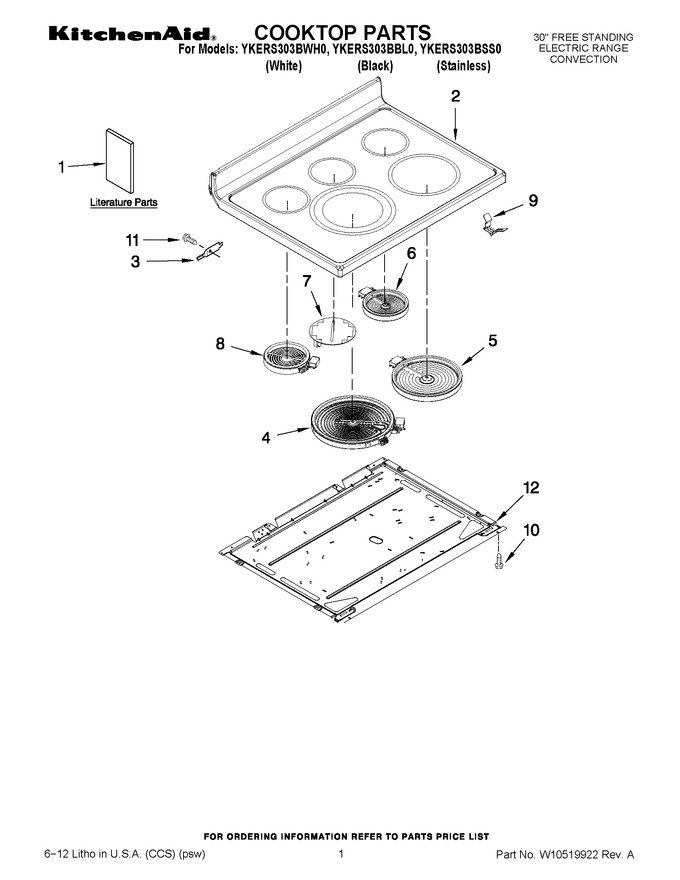

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392939 | Use & Care Guide |
|
- | |||||
| 1 | W10392961 | Tech Sheet (english) |
|
- | |||||
| 1 | W10478479 | Tech Sheet (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 2 | W10380677 | Cooktop (white) |
|
- | |||||
| 2 | W10380678 | Cooktop (black) |
|
- | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | WPW10297138 | Element (lf) 3000/2200/1100w (Replaces: W10297138) |
|
$ 334.94 | |||||
| 5 | WPW10251108 | Element (rf) 3200w (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 6 | W11171119 | Element (rr) 1200w (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | W11047668 | Element (cr), Warm Zone (Replaces: W10388247) |
|
$ 113.96 | |||||
| 8 | WPW10342780 | Element (lr), 1300w Dual (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
$ 6.47 | |||||
| 11 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 12 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 122.99 |
