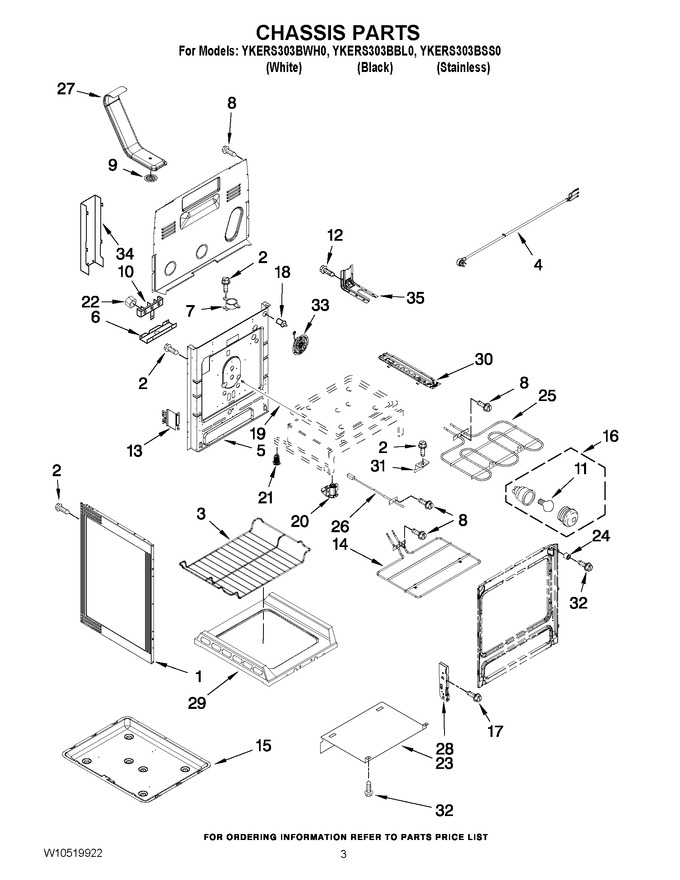

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 148.35 | ||||
| 1 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 133.84 | |||||
| 2 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 3 | W11256463 | Rack, Bottom (Replaces: W10289145) |
|
Immediately | $ 119.25 | ||||
| 4 | W11226497 | Cord, Power (Replaces: W10233363) |
|
Immediately | $ 65.69 | ||||
| 5 | W10273169 | Main Back |
|
- | |||||
| 6 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 7 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 9 | 9761301 | Screen, Catalyst |
|
$ 126.77 | |||||
| 10 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 27.12 | ||||
| 11 | 8009 | Bulb, Oven (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 13 | W10273002 | Bracket, Support |
|
$ 65.43 | |||||
| 14 | W10779716 | Element, Bake 3600w (Replaces: W10289097) |
|
Immediately | $ 55.31 | ||||
| 15 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 71.02 | ||||
| 16 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 18 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 130.00 | ||||
| 19 | W11370463 | Rod, Rear Door (Replaces: W10273192) |
|
Immediately | $ 57.32 | ||||
| 20 | WPW10341186 | Assembly, Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 21 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 22 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 23 | W10726740 | Shield, Heat (Replaces: W10289099) |
|
$ 124.31 | |||||
| 24 | W10877054 | Spacer - Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 25 | WPW10535127 | Element, Broil 3600w (Replaces: W10211455) |
|
$ 192.38 | |||||
| 26 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 27 | WPW10134285 | Vent, Oven (Replaces: W10134285) |
|
Immediately | $ 225.43 | ||||
| 28 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 29 | W10789865 | Bottom, Oven (Replaces: W10289079) |
|
$ 199.10 | |||||
| 30 | W11818353 | Rail, Base (left Hand) (Replaces: W10390007) |
|
$ 53.71 | |||||
| 30 | W11818353 | Rail, Base (right Hand) (Replaces: W10390008) |
|
$ 53.71 | |||||
| 31 | W10035900 | Support, Oven Bottom |
|
$ 12.31 | |||||
| 32 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 33 | W11043837 | Fan, Convection (Replaces: W10389553) |
|
Immediately | $ 267.54 | ||||
| 34 | WPW10326122 | Cover, Terminal (Replaces: W10326122) |
|
$ 119.66 | |||||
| 35 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 110.70 | |||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 98.30 | |||||
| NI | WPW10225523 | Insulation, Bottom Adapter Kit (Replaces: W10225523) |
|
$ 103.07 | |||||
| NI | 4820F015-59 | Strap, Insulation |
|
$ 8.39 |
