New Model Search:

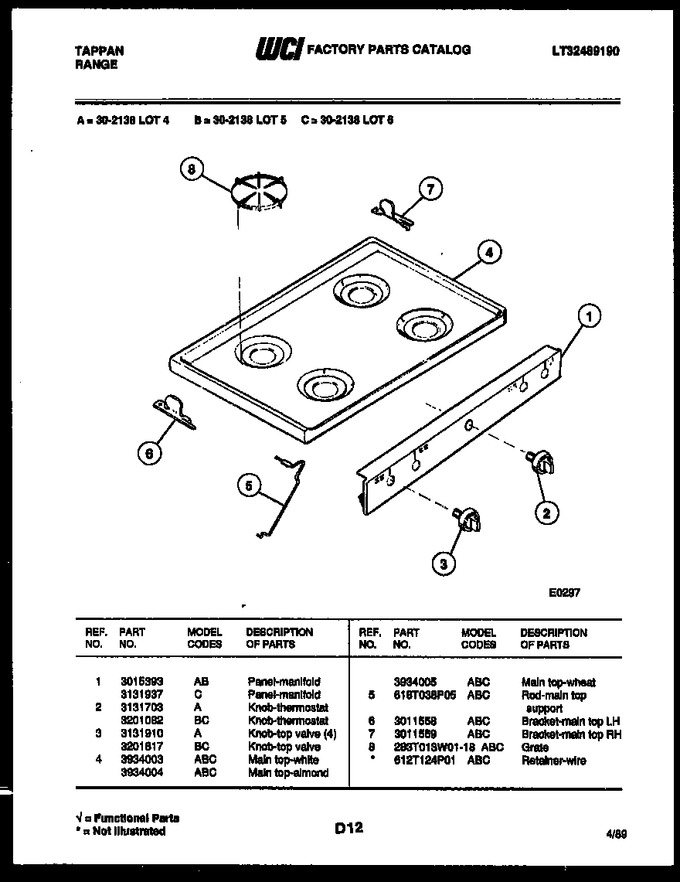

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015393 | Panel-manifold |
|
- | |||||
| 2 | 3201082 | Knob - Thermostat |
|
- | |||||
| 4 | 3934004 | Main Top, Almond |
|
- | |||||
| 4 | 3934005 | Main Top, Wheat |
|
- | |||||
| 4 | 3934003 | Main Top, White |
|
- | |||||
| 5 | 618T038P05 | Rod, Main Top Support |
|
- | |||||
| 6 | 3011558 | Bracket-main Top Lh |
|
- | |||||
| 7 | 3011559 | Bracket-main Top Rh |
|
- | |||||
| 8 | 283T013W01-18 | Grate |
|
- | |||||
| *20733 | 612T124P01 | Retainer - Wire |
|
- | |||||
| 3A | 3201817 | Knob - Top Valve |
|
- |
