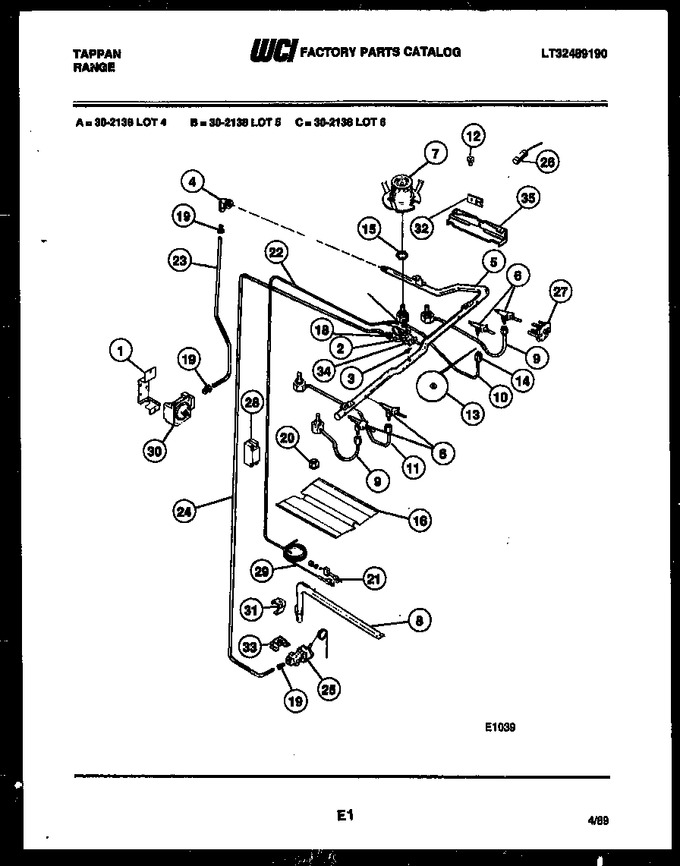

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner Parts


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131110		Bracket, Regulator		Appelez-nous	-
2	3201107		Thermostat		Appelez-nous	-
4	3012204		Elbow		Appelez-nous	-
5	3201106		Manifold - Pipe		Appelez-nous	-
6	3017542		Valve-3 Pos.		Appelez-nous	-
7	3011567		Burner Top Assembly		Appelez-nous	-
8	3131439		Burner-oven				$ 204.59
9	3131970		Burner-tube Front		Appelez-nous	-
10	3011569		Burner-tube (rr)		Appelez-nous	-
11	3011570		Burner-tube (lr)		Appelez-nous	-
12	3051420		Pop Rivet		Appelez-nous	-
13	3012358		Ferrule (4)		Appelez-nous	-
14	3131148		Nut-compression		Appelez-nous	-
15	3013279		Nut, Special				$ 2.34
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	3013272		Nut - Baffle		Appelez-nous	-
23	3014477		Tube-aluminum		Appelez-nous	-
24	3131448		Tube Aluminum		Appelez-nous	-
25	3131449		Valve - Safety		Appelez-nous	-
26	3131105		Igniter, Top Burner		Appelez-nous	-
27	695T225P02		Switch Igniter		Appelez-nous	-
28	3131113		Spark Module		Appelez-nous	-
29	3131300		Igniter, Oven		Appelez-nous	-
30	08067923		Control Regulator		Appelez-nous	-
31	3018603		Bracket		Appelez-nous	-
32	612T121F01		Retainer Igniter		Appelez-nous	-
33	3131438		Bracket-safety		Appelez-nous	-
34	695T220P01		Oven-igniter Switch		Appelez-nous	-
35	136T355W03		Channel, Flash Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
