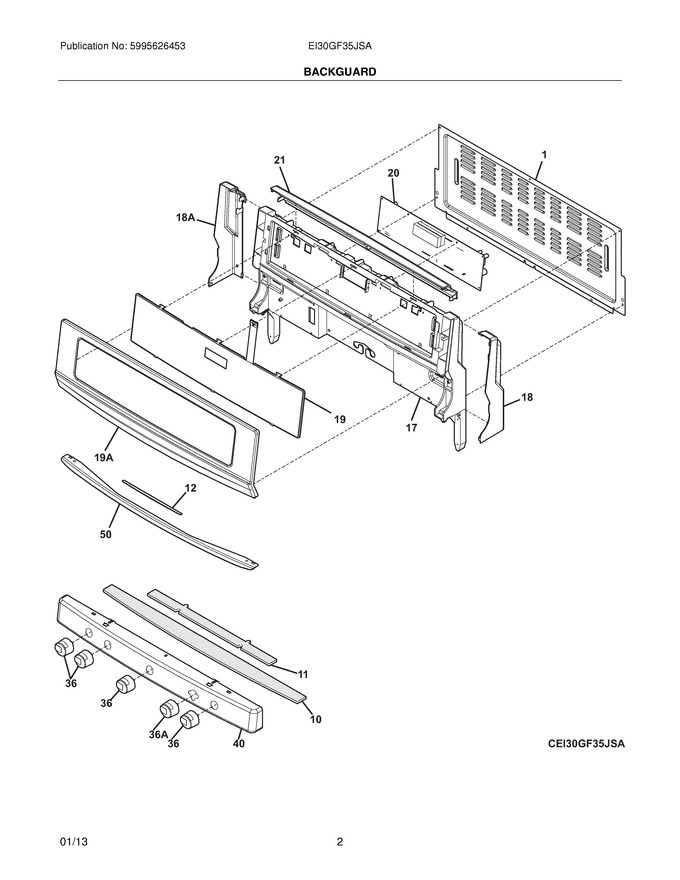

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316380500		Shield,backguard ,rear Wall		Appelez-nous	-
10	316528700		Insulation,manifold Panel				$ 89.31
11	316528800		Insulation,front Frame				$ 60.43
12	316538601		Insualtion,deflector				$ 13.70
17	316380400		Support,backguard ,black				$ 292.79
18	316381004		Channel,support ,black ,rh ,backguard				$ 64.84
21	316381401		Cap,backguard ,black ,top				$ 118.02
36	316535711		Knob,top Valve ,stainless ,(4)				$ 186.27
40	316512716		Panel,manifold ,stainless		Appelez-nous	-
50	316381701		Deflector,heat Shield ,inner				$ 157.71
18A	316381001		Channel,support ,black ,lh ,backguard				$ 83.27
19A	316381602		Overlay,backguard ,stainless				$ 296.36
36A	316535702		Knob,top Valve ,stainless				$ 160.37
F19	316380110		Membrane Assembly,touch ,black ,w/mtg Channel		Appelez-nous	-
F20	316381802		Clock/timer,electronic ,es1030   (Replaces: 316381800)				$ 425.66
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
